■ For telephone signal transmission lines and controlled connecting lines of computers, controlling low voltage equipment & instruments.
■ IEC 60189
■ VDE 0815

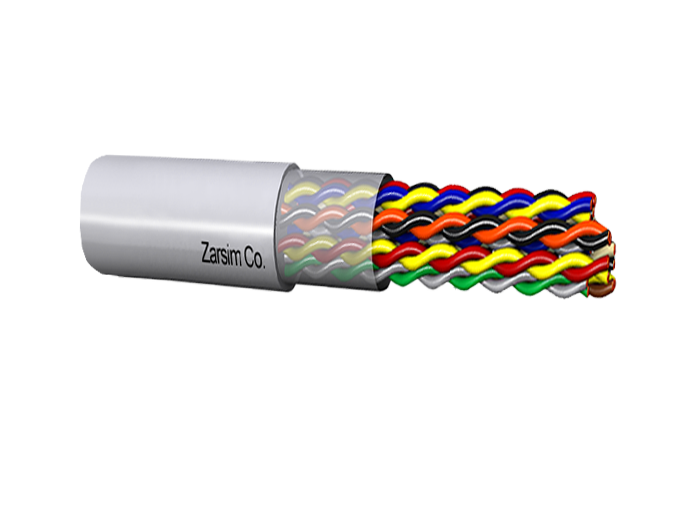

■ Solid plain or tinned annealed copper conductor.
■ Bare copper conductor (optional).
■ PVC insulation, type TI 1.
■ PVC sheath type TM 1.
■ Working temperature: Max. 70°C.
■ Code designation: JYY.
| Number of pairs | Conductor diameter | Insulation thickness | Sheath thickness | Overall diameter | Weight Approx. | ||
|---|---|---|---|---|---|---|---|
| mm | mm | mm | mm | kg/km | |||
| 2 | 0.5 | 0.2 | 0.8 | 4.6 | 23 | ||
| 4 | 0.5 | 0.2 | 0.8 | 5.8 | 37 | ||
| 6 | 0.5 | 0.2 | 1.0 | 7.0 | 54 | ||
| 8 | 0.5 | 0.2 | 1.0 | 7.6 | 72 | ||
| 10 | 0.5 | 0.2 | 1.0 | 8.2 | 86 | ||
| 15 | 0.5 | 0.2 | 1.0 | 9.8 | 120 | ||
| 20 | 0.5 | 0.2 | 1.0 | 10.9 | 153 | ||
| 30 | 0.5 | 0.2 | 1.2 | 11.5 | 195 |
