■ For transmitting analogue or digital signals of telephone cables as well as standard modems of postal services, communication and paging systems, access control, time and data control systems. Not for laying underground.
■ VDE 0815
■ TCI specification

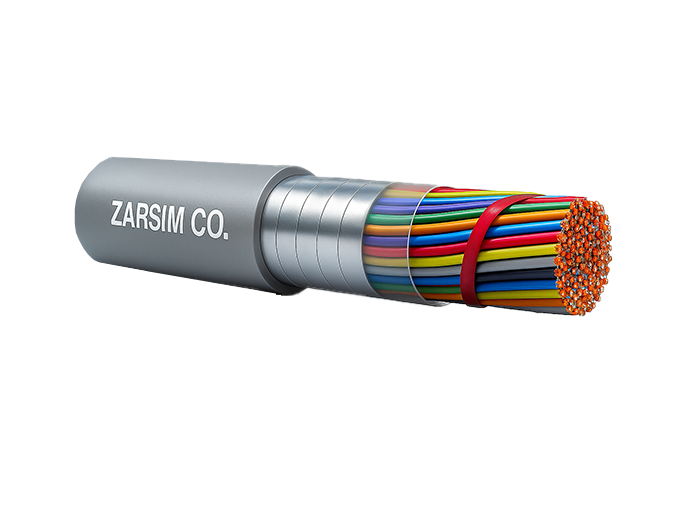

■ Solid plain or tinned annealed copper conductor.
■ PVC insulation, type TI 1, YJ 1.
■ Polyester type.
■ Aluminum foil.
■ PVC sheath type TM 1, YM 1.
■ Working temperature: Max. 70°C.
■ Code designation: JY (St) Y.
| Cable size | Insulation thickness (mm) | Sheath thickness (mm) | Overall diameter (mm) | Weight Approx. (kg/km) |
|---|---|---|---|---|
| 2 x 2 x 0.6 | 0.2 | 0.6 | 4.8 | 35 |
| 4 x 2 x 0.6 | 0.2 | 0.6 | 5.9 | 54 |
| 6 x 2 x 0.6 | 0.2 | 0.6 | 6.7 | 71 |
| 8 x 2 x 0.6 | 0.2 | 0.6 | 7.4 | 88 |
| 10 x 2 x 0.6 | 0.2 | 0.6 | 8.0 | 105 |
| 15 x 2 x 0.6 | 0.2 | 1.0 | 9.3 | 145 |
| 20 x 2 x 0.6 | 0.2 | 1.0 | 10.4 | 184 |
| 25 x 2 x 0.6 | 0.2 | 1.1 | 12.0 | 250 |
| 30 x 2 x 0.6 | 0.2 | 1.2 | 12.7 | 273 |
| 40 x 2 x 0.6 | 0.2 | 1.2 | 14.2 | 350 |
| 50 x 2 x 0.6 | 0.2 | 1.2 | 15.6 | 426 |
| 70 x 2 x 0.6 | 0.2 | 1.4 | 18.4 | 592 |
| 100 x 2 x 0.6 | 0.2 | 1.4 | 21.4 | 686 |
| 2 x 2 x 0.8 | 0.25 | 1.0 | 5.6 | 48 |
| 4 x 2 x 0.8 | 0.25 | 1.0 | 7.0 | 79 |
| 6 x 2 x 0.8 | 0.25 | 1.0 | 8.0 | 108 |
| 8 x 2 x 0.8 | 0.25 | 1.0 | 9.0 | 136 |
| 10 x 2 x 0.8 | 0.25 | 1.0 | 9.8 | 163 |
| 15 x 2 x 0.8 | 0.25 | 1.2 | 11.9 | 240 |
| 20 x 2 x 0.8 | 0.25 | 1.2 | 13.3 | 307 |
| 30 x 2 x 0.8 | 0.25 | 1.2 | 15.7 | 438 |
| 40 x 2 x 0.8 | 0.25 | 1.2 | 17.7 | 567 |
| 50 x 2 x 0.8 | 0.25 | 1.4 | 19.9 | 712 |
| 70 x 2 x 0.8 | 0.25 | 1.4 | 23.0 | 967 |
| 100 x 2 x 0.8 | 0.25 | 1.4 | 26.9 | 1129 |
