■ Wire harness of low-tension electric circuits for automobiles and motorcycles.
■ PSA B25 1110
■ ISO 6722

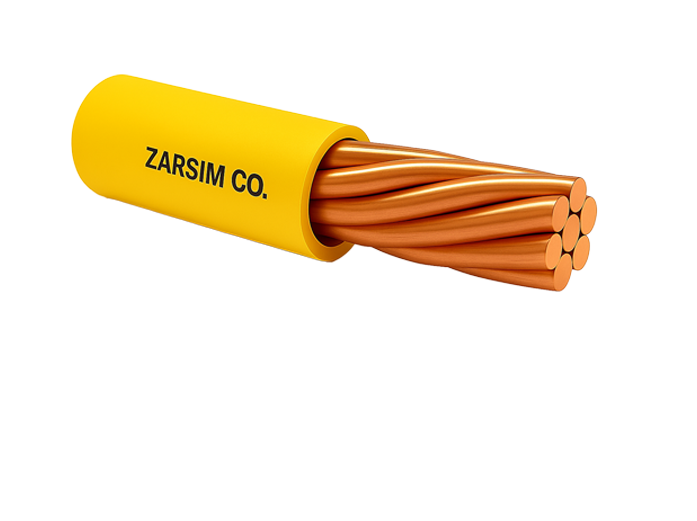

■ Plain or tinned annealed stranded copper conductor.
■ PVC insulation type T2.
■ Plain or tinned annealed stranded copper conductor.
■ PVC insulation type T2.
■ Rated voltage: up to 50 V.
■ Working temperature: -40 to +100°C.
■ Resistant to heat, cold, abrasion, flame and chemicals.
■ Excellent flexibility.
■ Available in colors.
| Cross-sectional area Nom. (mm²) | No. of wires x diameter Nom. | Conductor diameter (mm) | Insulation thickness (mm) | Overall diameter Min. (mm) | Overall diameter Max. (mm) | Weight Approx. (kg/km) | Conductor resistance at 20°C Min. (Ω/km) | Conductor resistance at 20°C Max. (Ω/km) |
|---|---|---|---|---|---|---|---|---|
| 0.22 | 7 x 0.20 | 0.61 | 0.22 | 1.15 | 1.25 | 3 | 77.90 | 84.80 |
| 0.35 | 7 x 0.25 | 0.77 | 0.22 | 1.25 | 1.40 | 4 | 50.00 | 54.40 |
| 0.5 | 16 x 0.20 | 0.93 | 0.28 | 1.40 | 1.70 | 6 | 34.10 | 37.10 |
| 0.75 | 24 x 0.20 | 1.14 | 0.30 | 1.70 | 1.90 | 9 | 22.70 | 24.70 |
| 1 | 32 x 0.20 | 1.31 | 0.30 | 1.99 | 2.15 | 12 | 17.00 | 18.50 |
| 1.5 | 30 x 0.25 | 1.59 | 0.30 | 2.10 | 2.40 | 16 | 11.70 | 12.70 |
| 2 | 37 x 0.25 | 1.76 | 0.35 | 2.50 | 2.80 | 21 | 8.66 | 9.42 |
| 2.5 | 50 x 0.25 | 2.05 | 0.35 | 2.65 | 3.00 | 25 | 6.99 | 7.60 |
| 3 | 44 x 0.30 | 2.31 | 0.40 | 3.25 | 3.45 | 33 | 5.66 | 6.15 |
| 4 | 56 x 0.30 | 2.60 | 0.40 | 3.70 | 3.90 | 43 | 4.33 | 4.71 |
| 5 | 70 x 0.30 | 2.91 | 0.40 | 3.80 | 4.00 | 49 | 3.62 | 3.94 |
| 6 | 84 x 0.30 | 3.19 | 0.40 | 4.20 | 4.50 | 70 | 2.89 | 3.14 |
| 7 | 105 x 0.30 | 3.57 | 0.48 | 4.76 | 5.00 | 73 | 2.50 | 2.72 |
