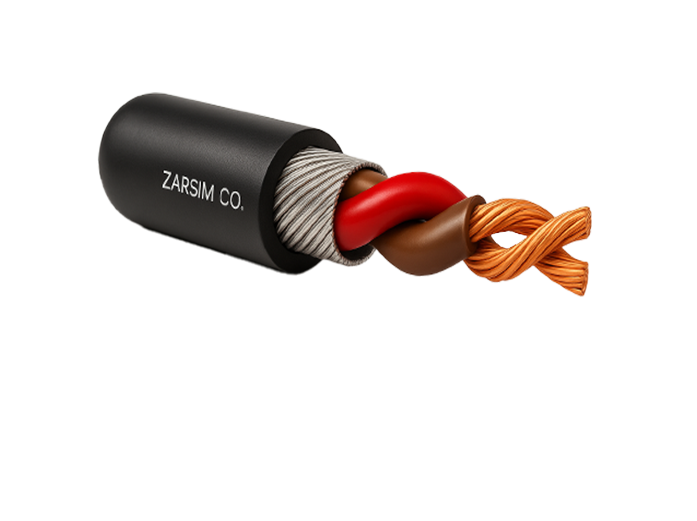

▪ Cable used for low voltage circuits in automobiles (vehicles and motorcycles); especially for applications where shielding of cable is required as in sensor leads and electronic circuits.
▪ Annealed stranded copper conductor.
▪ PVC insulation, type T1.
▪ Spiral shield annealed copper conductor.
▪ PVC sheath type T1.
▪ Working temperature: Max. 80°C.
▪ Code designation: ASSSH*.
*: Heat resistant cable, SH-SH can be supplied upon request.
| Cross-sectional area Nom. (mm²) | No. of wires x diameter Nom. | Stranding outer diameter (mm) | Shield | Sheath | Weight Approx. (kg/km) | Conductor resistance at 20°C Max. (Ω/km) | ||
|---|---|---|---|---|---|---|---|---|
| Wire diameter (mm) | Overall diameter (mm) | Thickness (mm) | Overall diameter (mm) | |||||
| 1C × 0.3 | 7 x 0.26 | - | 0.12 | 1.64 | 0.50 | 2.64 | 13 | 50.2 |
| 1C × 0.5 | 7 x 0.32 | - | 0.12 | 1.84 | 0.50 | 2.84 | 16 | 32.7 |
| 1C × 1.25 | 19 x 0.29 | - | 0.12 | 2.34 | 0.50 | 3.34 | 26 | 14.9 |
| 2C × 0.3 | 7 x 0.26 | 2.80 | 0.12 | 3.04 | 0.50 | 4.04 | 24 | 50.2 |
| 2C × 0.5 | 7 x 0.32 | 3.20 | 0.12 | 3.44 | 0.50 | 4.44 | 30 | 32.7 |
| 2C × 0.85 | 19 x 0.24 | 3.60 | 0.12 | 3.84 | 0.50 | 4.84 | 38 | 21.7 |
| 2C × 1.25 | 19 x 0.29 | 4.20 | 0.12 | 4.44 | 0.50 | 5.44 | 50 | 14.9 |
| 2C × 2 | 37 x 0.26 | 5.20 | 0.12 | 5.44 | 0.50 | 6.44 | 69 | 9.5 |
| 3C × 0.3 | 7 x 0.26 | 3.02 | 0.12 | 3.26 | 0.50 | 4.26 | 30 | 50.2 |
| 3C × 0.5 | 7 x 0.32 | 3.45 | 0.12 | 3.69 | 0.50 | 4.69 | 39 | 32.7 |
| 3C × 0.85 | 19 x 0.24 | 3.88 | 0.12 | 4.12 | 0.50 | 5.12 | 51 | 21.7 |
| 3C × 1.25 | 19 x 0.29 | 4.53 | 0.12 | 4.77 | 0.50 | 5.77 | 67 | 14.9 |
| 4C × 0.3 | 7 x 0.26 | 3.38 | 0.12 | 3.62 | 0.50 | 4.62 | 37 | 50.2 |
| 4C × 0.5 | 7 x 0.32 | 3.86 | 0.12 | 4.10 | 0.50 | 5.10 | 48 | 32.7 |
| 5C × 0.3 | 7 x 0.26 | 3.78 | 0.12 | 4.02 | 0.50 | 5.02 | 46 | 50.2 |
| 5C × 0.5 | 7 x 0.32 | 4.32 | 0.12 | 4.56 | 0.50 | 5.56 | 60 | 32.7 |
| 6C × 0.3 | 7 x 0.26 | 4.20 | 0.12 | 4.44 | 0.50 | 5.44 | 54 | 50.2 |
| 6C × 0.5 | 7 x 0.32 | 4.80 | 0.12 | 5.04 | 0.50 | 6.04 | 71 | 32.7 |
| 8C × 0.3 | 7 x 0.26 | 5.10 | 0.12 | 5.34 | 0.50 | 6.34 | 71 | 50.2 |
| 8C × 0.3 | 7 x 0.32 | 5.78 | 0.12 | 6.02 | 0.50 | 7.02 | 93 | 32.7 |
