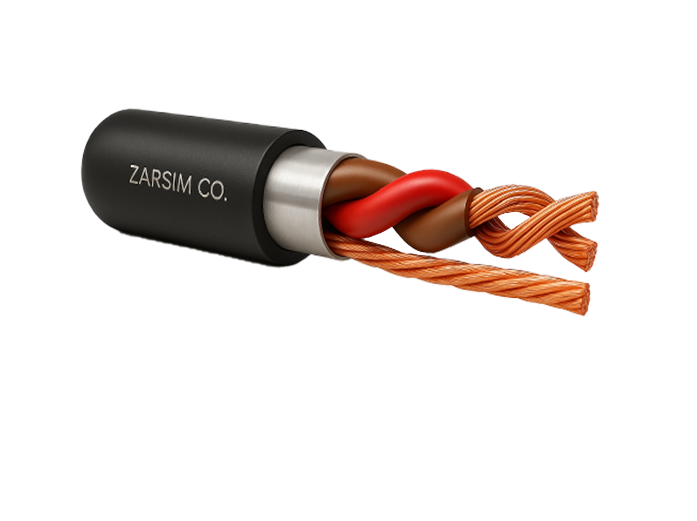

■ Cable used for low voltage circuits in automobiles (vehicles and motorcycles); especially for applications where shielding of cable is required as in sensor leads and electronic circuits.
■ Annealed stranded copper conductor.
■ PVC insulation, type T1.
■ Aluminum foil.
■ PVC sheath type T1.
■ Working temperature: Max. 80°C.
■ Code designation: LE-SS*.
*: Heat resistant cable, LE-SH can be supplied upon request.
| Cross-sectional area Nom. (mm²) | No. of wires x diameter Nom. | Stranding outer diameter (mm) | Shield | Sheath | Weight Approx. (kg/km) | Conductor resistance at 20°C Max. (Ω/km) | ||
|---|---|---|---|---|---|---|---|---|
| Wire diameter (mm) | Overall diameter (mm) | Thickness (mm) | Overall diameter (mm) | |||||
| 1C × 0.5 | 7 x 0.32 | - | 0.05 | 2.60 | 0.55 | 3.70 | 19 | 32.7 |
| 1C × 1.25 | 19 x 0.29 | - | 0.05 | 3.10 | 0.60 | 4.30 | 29 | 14.9 |
| 2C × 0.3 | 7 x 0.26 | 2.8 | 0.05 | 2.90 | 0.60 | 4.10 | 24 | 50.2 |
| 2C × 0.5 | 7 x 0.32 | 3.2 | 0.05 | 3.30 | 0.60 | 4.50 | 29 | 32.7 |
| 2C × 0.85 | 19 x 0.24 | 3.6 | 0.05 | 3.70 | 0.60 | 4.90 | 37 | 21.7 |
| 2C × 1.25 | 19 x 0.29 | 4.2 | 0.05 | 4.30 | 0.60 | 5.50 | 48 | 14.9 |
| 3C × 0.3 | 7 x 0.26 | 3.02 | 0.05 | 3.12 | 0.59 | 4.30 | 29 | 50.2 |
| 3C × 0.5 | 7 x 0.32 | 3.45 | 0.05 | 3.55 | 0.73 | 5.00 | 40 | 32.7 |
| 4C × 0.3 | 7 x 0.26 | 3.38 | 0.05 | 3.48 | 0.66 | 4.80 | 37 | 50.2 |
| 4C × 0.5 | 7 x 0.32 | 3.86 | 0.05 | 3.96 | 0.82 | 5.60 | 551 | 32.7 |
| 5C × 0.3 | 7 x 0.26 | 3.78 | 0.05 | 3.88 | 0.91 | 5.70 | 50 | 50.2 |
| 5C × 0.5 | 7 x 0.32 | 4.32 | 0.05 | 4.42 | 0.91 | 6.24 | 63 | 32.7 |
| 6C × 0.3 | 7 x 0.26 | 4.2 | 0.05 | 4.30 | 0.75 | 5.80 | 53 | 50.2 |
| 6C × 0.5 | 7 x 0.32 | 4.8 | 0.05 | 4.90 | 0.75 | 6.40 | 69 | 32.7 |
| 6C × 0.85 | 19 x 0.24 | 5.40 | 0.05 | 5.50 | 0.60 | 6.70 | 87 | 21.7 |
| 7C × 0.3 | 7 x 0.26 | 4.20 | 0.05 | 4.30 | 0.75 | 5.80 | 56 | 50.2 |
| 8C × 0.3 | 7 x 0.26 | 5.1 | 0.05 | 5.20 | 0.75 | 6.70 | 70 | 50.2 |
