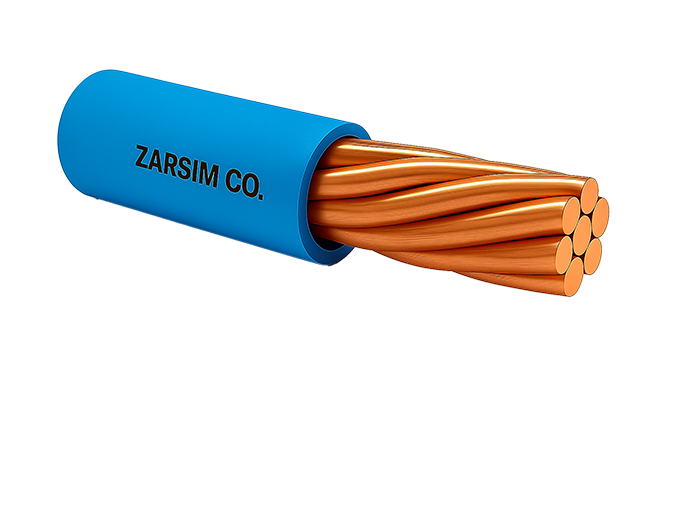

| Cross-sectional area Nom. (mm²) | No. of wires x diameter Nom. (mm) | Conductor diameter (mm) | Insulation thickness (mm) | Overall diameter (mm) | Weight Approx. (kg/km) | Current limit** Nom. (A) | Conductor resistance at 20°C Max. (Ω/km) | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0.3f* | 19 x 0.16 | 0.8 | 0.3 | 1.4 | 5 | 8 | 48.8 | |||||
| 0.3 | 7 x 0.26 | 0.8 | 0.3 | 1.4 | 5 | 8 | 50.2 | |||||
| 0.5f | 19 x 0.19 | 1.0 | 0.3 | 1.6 | 7 | 10 | 36.7 | |||||
| 0.5 | 7 x 0.32 | 1.0 | 0.3 | 1.6 | 7 | 11 | 32.7 | |||||
| 0.75f | 19 x 0.23 | 1.2 | 0.3 | 1.8 | 10 | 14 | 24.4 | |||||
| 0.85f | 37 x 0.17 | 1.2 | 0.3 | 1.8 | 10 | 14 | 21.7 | |||||
| 0.85 | 19 x 0.24 | 1.2 | 0.3 | 1.8 | 10 | 14 | 21.7 | |||||
| 1.25f | 37 x 0.21 | 1.5 | 0.3 | 2.1 | 14 | 19 | 14.7 | |||||
| 1.25 | 19 x 0.29 | 1.5 | 0.3 | 2.1 | 14 | 19 | 14.9 | |||||
| 2f | 37 x 0.26 | 1.8 | 0.4 | 2.6 | 22 | 26 | 9.50 | |||||
| 2 | 19 x 0.37 | 1.9 | 0.4 | 2.7 | 22 | 26 | 9.00 | |||||
| * The "f" indicates a flexible conductor with a finer wire diameter | ||||||||||||
| ** Current limit is for conductor temperature of 80°C (maximum allowable temperature) and ambiet temperature of 40°C. | ||||||||||||
