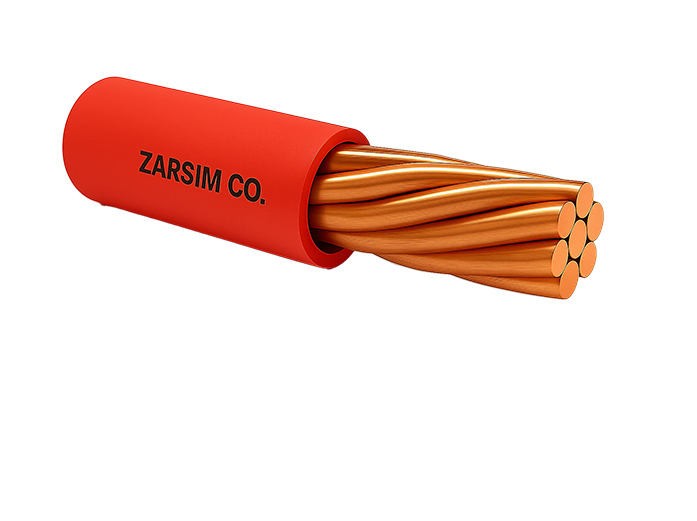

| Cross-sectional area Nom. (mm²) | No. of wires x diameter Nom. (mm) | Conductor diameter (mm) | Insulation thickness (mm) | Overall diameter (mm) | Weight Approx. (kg/km) | Current limit** Nom. (A) | Conductor resistance at 20°C Max. (Ω/km) | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0.3 f* | 15 x 0.18 | 0.8 | 0.5 | 1.8 | 6 | 9 | 48.9 | |||||
| 0.3 | 7 x 0.26 | 0.8 | 0.5 | 1.8 | 6 | 9 | 50.2 | |||||
| 0.5f | 20 x 0.18 | 1.0 | 0.5 | 2.1 | 8 | 11 | 36.7 | |||||
| 0.5 | 7 x 0.32 | 1.0 | 0.5 | 2.0 | 9 | 12 | 32.7 | |||||
| 0.75f | 30 x 0.18 | 1.2 | 0.5 | 2.2 | 11 | 14 | 24.4 | |||||
| 0.85f | 34 x 0.18 | 1.2 | 0.5 | 2.2 | 12 | 15 | 21.6 | |||||
| 0.85 | 16 x 0.26 | 1.2 | 0.5 | 2.2 | 12 | 15 | 22.8 | |||||
| 0.85 | 11 x 0.32 | 1.2 | 0.5 | 2.2 | 12 | 15 | 20.8 | |||||
| 1.25f | 50 x 0.18 | 1.5 | 0.5 | 2.5 | 16 | 20 | 14.7 | |||||
| 1.25 | 16 x 0.32 | 1.5 | 0.5 | 2.5 | 16 | 20 | 14.3 | |||||
| 2f | 37 x 0.26 | 1.8 | 0.5 | 2.9 | 23 | 26 | 9.50 | |||||
| 2 | 26 x 0.32 | 1.9 | 0.5 | 2.9 | 24 | 27 | 8.81 | |||||
| 3 | 41 x 0.32 | 2.4 | 0.6 | 3.6 | 38 | 37 | 5.59 | |||||
| 5 | 65 x 0.32 | 3.0 | 0.7 | 4.4 | 59 | 50 | 3.52 | |||||
| * The "f" indicates a flexible conductor with a finer wire diameter | ||||||||||||
| ** Current limit is for conductor temperature of 80°C (maximum allowable temperature) and ambiet temperature of 40°C. | ||||||||||||
