Double layer

Silicone rubber insulated wire, Double layer, 300 V / 500 V

Application

Recommended for use in foundries, steel and glass works, shipbuilding industries, furnace construction, and home appliance industries.

Standard

IEC60245-1
IEC60245-3
IEC60228
IEC60754-1,2
IEC61034-2
IEC60332-1-2

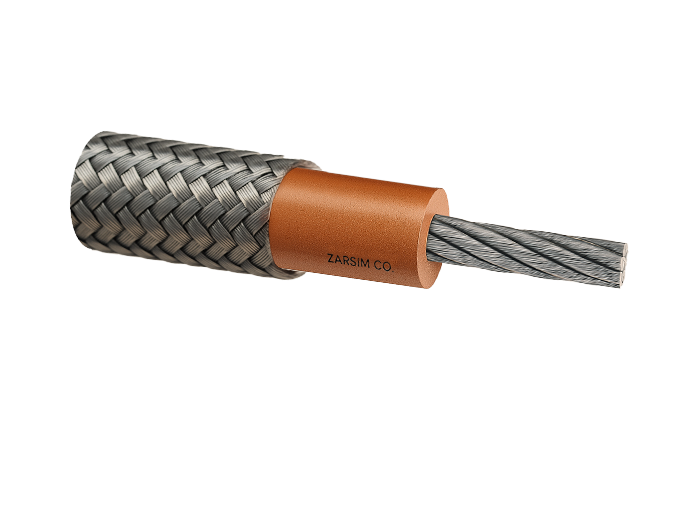

Construction

Plain or tinned annealed copper conductor, class 5.
Silicone rubber insulation, type IE2.
Fiberglass braid.

General specification

Rated voltage: 300/500 V
Working temperature: -60 to +200°C
Halogen free, flame retardant
Resistance to heat and moisture

Cross-sectional area Nom.	Insulation thickness	Overall diameter
		Min.	Max.
mm²	mm	mm	mm
0.5	0.6	2.6	3.3
0.75	0.6	2.8	3.5
1	0.6	2.9	3.7
1.5	0.7	3.4	4.2
2.5	0.8	4.0	5.0
4	0.8	4.5	5.6
6	0.8	5.0	6.2
10	1.0	6.2	7.8
16	1.0	7.3	9.1
