■ For industry and distribution boards as well as in subscriber networks, where mechanical damages are not to be expected, in underground, in water, indoors and in cable ducts.
■ VDE 0271
■ IEC 60502-1
■ ISIRI 3569-1

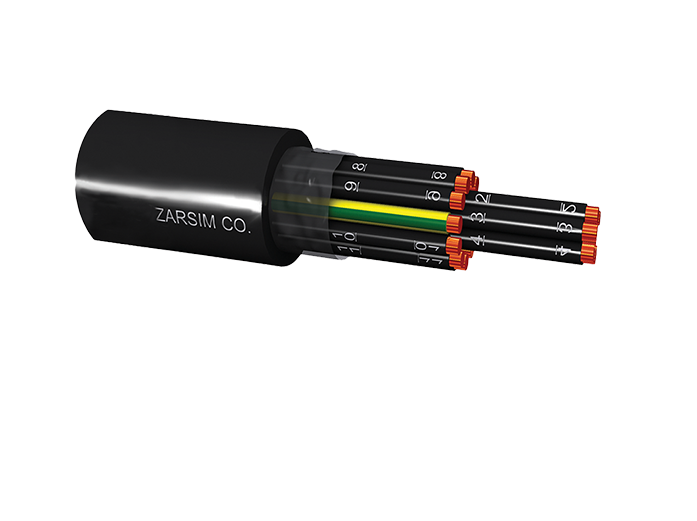

■ Plain annealed copper conductor, class 1 or 2*.
■ PVC insulation, type A.
■ Cores twisted together, if necessary in concentric layers.
■ PVC inner covering.
■ PVC sheath, type ST1.
■ Rated voltage: 0.6/1 kV.
■ Working temperature: Max. 70°C.
■ Code designation: NYY-JZ/-OZ.
*: Class 5 can be supplied upon request
| Cross-sectional area Nom. (mm²) | No. of wires x diameter Nom. (mm) | Insulation thickness (mm) | Sheath thickness (mm) | Overall diameter (mm) | Weight Approx. (kg/km) |
|---|---|---|---|---|---|
| 5 x 1.5 re | 1 x 1.38 | 0.8 | 1.8 | 13.6 | 290 |
| 6 x 1.5 re | 1 x 1.38 | 0.8 | 1.8 | 14.5 | 335 |
| 7 x 1.5 re | 1 x 1.38 | 0.8 | 1.8 | 14.5 | 340 |
| 10 x 1.5 re | 1 x 1.38 | 0.8 | 1.8 | 17.8 | 460 |
| 12 x 1.5 re | 1 x 1.38 | 0.8 | 1.8 | 18.3 | 515 |
| 16 x 1.5 re | 1 x 1.38 | 0.8 | 1.8 | 19.6 | 635 |
| 19 x 1.5 re | 1 x 1.38 | 0.8 | 1.8 | 22.6 | 715 |
| 20 x 1.5 re | 1 x 1.38 | 0.8 | 1.8 | 22.4 | 810 |
| 24 x 1.5 re | 1 x 1.38 | 0.8 | 1.8 | 24.0 | 880 |
| 27 x 1.5 re | 1 x 1.38 | 0.8 | 1.8 | 24.2 | 960 |
| 30 x 1.5 re | 1 x 1.38 | 0.8 | 1.8 | 24.8 | 1030 |
| 34 x 1.5 re | 1 x 1.38 | 0.8 | 1.8 | 26.6 | 1230 |
| 37 x 1.5 re | 1 x 1.38 | 0.8 | 1.9 | 26.8 | 1270 |
| 48 x 1.5 re | 1 x 1.38 | 0.8 | 2.0 | 31.5 | 1660 |
| 52 x 1.5 re | 1 x 1.38 | 0.8 | 2.0 | 33.0 | 1720 |
| 61 x 1.5 re | 1 x 1.38 | 0.8 | 2.1 | 34.7 | 1930 |
| 5 x 1.5 rm | 7 x 0.53 | 0.8 | 1.8 | 14.1 | 295 |
| 6 x 1.5 rm | 7 x 0.53 | 0.8 | 1.8 | 15.1 | 345 |
| 7 x 1.5 rm | 7 x 0.53 | 0.8 | 1.8 | 15.1 | 350 |
| 10 x 1.5 rm | 7 x 0.53 | 0.8 | 1.8 | 18.2 | 473 |
| 12 x 1.5 rm | 7 x 0.53 | 0.8 | 1.8 | 18.7 | 530 |
| 16 x 1.5 rm | 7 x 0.53 | 0.8 | 1.8 | 20.5 | 650 |
| 19 x 1.5 rm | 7 x 0.53 | 0.8 | 1.8 | 21.5 | 730 |
| 20 x 1.5 rm | 7 x 0.53 | 0.8 | 1.8 | 23.0 | 820 |
| 24 x 1.5 rm | 7 x 0.53 | 0.8 | 1.8 | 24.8 | 900 |
| 27 x 1.5 rm | 7 x 0.53 | 0.8 | 1.8 | 25.4 | 980 |
| 30 x 1.5 rm | 7 x 0.53 | 0.8 | 1.8 | 26.2 | 1050 |
| 34 x 1.5 rm | 7 x 0.53 | 0.8 | 1.9 | 28.0 | 1250 |
| 37 x 1.5 rm | 7 x 0.53 | 0.8 | 2.0 | 28.2 | 1290 |
| 48 x 1.5 rm | 7 x 0.53 | 0.8 | 2.0 | 32.0 | 1680 |
| 52 x 1.5 rm | 7 x 0.53 | 0.8 | 2.1 | 33.5 | 1740 |
| 61 x 1.5 rm | 7 x 0.53 | 0.8 | 2.1 | 35.4 | 1960 |
| 5 x 2.5 re | 1 x 1.78 | 0.8 | 2.3 | 14.8 | 370 |
| 6 x 2.5 re | 1 x 1.78 | 0.8 | 1.8 | 16.0 | 420 |
| 7 x 2.5 re | 1 x 1.78 | 0.8 | 1.8 | 16.0 | 440 |
| 10 x 2.5 re | 1 x 1.78 | 0.8 | 1.8 | 19.6 | 610 |
| 12 x 2.5 re | 1 x 1.78 | 0.8 | 1.8 | 20.2 | 675 |
| 16 x 2.5 re | 1 x 1.78 | 0.8 | 1.8 | 22 | 845 |
| 19 x 2.5 re | 1 x 1.78 | 0.8 | 1.8 | 23.1 | 965 |
| 20 x 2.5 re | 1 x 1.78 | 0.8 | 1.8 | 25 | 1050 |
| 24 x 2.5 re | 1 x 1.78 | 0.8 | 1.8 | 27.6 | 1240 |
| 27 x 2.5 re | 1 x 1.78 | 0.8 | 1.8 | 27.6 | 1310 |
| 30 x 2.5 re | 1 x 1.78 | 0.8 | 1.9 | 28.4 | 1420 |
| 34 x 2.5 re | 1 x 1.78 | 0.8 | 2 | 30.6 | 1710 |
| 37 x 2.5 re | 1 x 1.78 | 0.8 | 2 | 30.6 | 1760 |
| 48 x 2.5 re | 1 x 1.78 | 0.8 | 2.1 | 35.2 | 2250 |
| 52 x 2.5 re | 1 x 1.78 | 0.8 | 2.1 | 36 | 2380 |
| 61 x 2.5 re | 1 x 1.78 | 0.8 | 2.2 | 37.2 | 2730 |
| 5 x 2.5 rm | 7 x 0.67 | 0.8 | 1.8 | 15.2 | 375 |
| 6 x 2.5 rm | 7 x 0.67 | 0.8 | 1.8 | 16.4 | 430 |
| 7 x 2.5 rm | 7 x 0.67 | 0.8 | 1.8 | 16.4 | 450 |
| 10 x 2.5 rm | 7 x 0.67 | 0.8 | 1.8 | 20 | 620 |
| 12 x 2.5 rm | 7 x 0.67 | 0.8 | 1.8 | 20.6 | 690 |
| 16 x 2.5 rm | 7 x 0.67 | 0.8 | 1.8 | 22.6 | 860 |
| 19 x 2.5 rm | 7 x 0.67 | 0.8 | 1.8 | 23.7 | 980 |
| 20 x 2.5 rm | 7 x 0.67 | 0.8 | 1.8 | 25.6 | 1070 |
| 24 x 2.5 rm | 7 x 0.67 | 0.8 | 1.8 | 28.2 | 1260 |
| 27 x 2.5 rm | 7 x 0.67 | 0.8 | 1.8 | 28.2 | 1330 |
| 30 x 2.5 rm | 7 x 0.67 | 0.8 | 1.9 | 29.2 | 1440 |
| 34 x 2.5 rm | 7 x 0.67 | 0.8 | 2 | 31.4 | 1730 |
| 37 x 2.5 rm | 7 x 0.67 | 0.8 | 2.1 | 31.6 | 1780 |
| 48 x 2.5 rm | 7 x 0.67 | 0.8 | 2.1 | 36.4 | 2280 |
| 52 x 2.5 rm | 7 x 0.67 | 0.8 | 2.2 | 37.5 | 2410 |
| 61 x 2.5 rm | 7 x 0.67 | 0.8 | 2.2 | 39.4 | 2760 |
