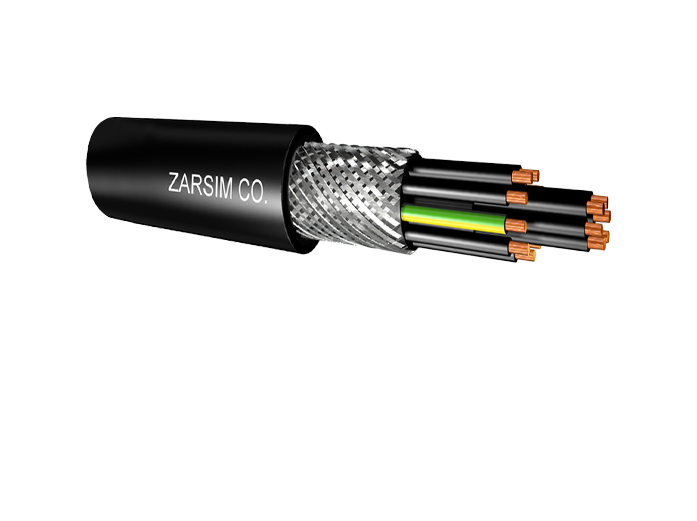

PVC insulated, PVC sheathed, flexible screened control cable, 300/500 V

Application

■ For electrical connection of production machines and machine tools if a certain amount of electronic screening is required. Shows some resistance to all purpose mineral oil.

Standard

■ ISIRI 607
■ IEC 60227
■ HD 21
■ VDE 0250

Construction

■ Plain annealed copper conductor, class 5.
■ PVC insulation, type D.
■ Cores twisted together, if necessary in several concentric layers.
■ Polyester tape if necessary.
■ Plain or tinned annealed copper braid.
■ PVC sheath type ST9.

General Specifications

■ Rated voltage: 300/500 V.
■ Working temperature: Max. 70°C.
■ Resistant to oil.
■ Code designation: YSLCY-JZ/-OZ.

Cross-sectional area Nom. (mm²)	No. of wires x diameter Nom. (mm)	Insulation thickness (mm)	Screen wire diameter Nom. (mm)	Sheath thickness (mm)	Overall diameter (mm)	Weight Approx. (kg/km)
2 x 0.5	16 x 0.20	0.6	0.16	0.8	6.6	64
3 x 0.5	16 x 0.20	0.6	0.16	0.8	6.8	75
4 x 0.5	16 x 0.20	0.6	0.16	0.8	7.4	95
5 x 0.5	16 x 0.20	0.6	0.16	0.8	8.0	115
6 x 0.5	16 x 0.20	0.6	0.16	1.0	9.2	125
7 x 0.5	16 x 0.20	0.6	0.16	1.0	9.2	135
8 x 0.5	16 x 0.20	0.6	0.16	1.0	10.6	150
10 x 0.5	16 x 0.20	0.6	0.21	1.2	11.8	180
12 x 0.5	16 x 0.20	0.6	0.21	1.2	12.4	205
14 x 0.5	16 x 0.20	0.6	0.21	1.2	13.0	230
16 x 0.5	16 x 0.20	0.6	0.21	1.2	13.6	270
20 x 0.5	16 x 0.20	0.6	0.21	1.5	16.0	340
24 x 0.5	16 x 0.20	0.6	0.21	1.5	17.0	400
27 x 0.5	16 x 0.20	0.6	0.21	1.6	17.6	420
30 x 0.5	16 x 0.20	0.6	0.21	1.6	18.2	455
34 x 0.5	16 x 0.20	0.6	0.21	1.8	20.0	520
37 x 0.5	16 x 0.20	0.6	0.21	1.8	20.4	535
40 x 0.5	16 x 0.20	0.6	0.26	1.8	21.2	580
50 x 0.5	16 x 0.20	0.6	0.26	1.8	23.4	740
61 x 0.5	16 x 0.20	0.6	0.26	1.8	24.6	880
2 x 0.75	24 x 0.20	0.6	0.16	0.8	6.8	82
3 x 0.75	24 x 0.20	0.6	0.16	0.8	7.2	94
4 x 0.75	24 x 0.20	0.6	0.16	0.8	7.8	114
5 x 0.75	24 x 0.20	0.6	0.16	1.0	8.8	130
6 x 0.75	24 x 0.20	0.6	0.16	1.0	9.6	154
7 x 0.75	24 x 0.20	0.6	0.16	1.0	9.6	155
8 x 0.75	24 x 0.20	0.6	0.16	1.0	11.2	180
10 x 0.75	24 x 0.20	0.6	0.21	1.2	12.4	230
12 x 0.75	24 x 0.20	0.6	0.21	1.2	12.8	260
14 x 0.75	24 x 0.20	0.6	0.21	1.2	13.4	305
16 x 0.75	24 x 0.20	0.6	0.21	1.2	14.0	340
20 x 0.75	24 x 0.20	0.6	0.21	1.5	16.5	420
24 x 0.75	24 x 0.20	0.6	0.21	1.5	17.8	485
27 x 0.75	24 x 0.20	0.6	0.21	1.8	18.0	520
30 x 0.75	24 x 0.20	0.6	0.21	1.8	19.2	570
34 x 0.75	24 x 0.20	0.6	0.21	1.8	20.8	640
37 x 0.75	24 x 0.20	0.6	0.21	1.8	21	670
40 x 0.75	24 x 0.20	0.6	0.26	1.8	22	730
50 x 0.75	24 x 0.20	0.6	0.26	1.8	24	920
61 x 0.75	24 x 0.20	0.6	0.26	2.1	26	1100
2 x 1	32 x 0.20	0.6	0.16	0.8	7.2	85
3 x 1	32 x 0.20	0.6	0.16	0.8	7.6	105
4 x 1	32 x 0.20	0.6	0.16	0.8	8.4	125
5 x 1	32 x 0.20	0.6	0.16	1.0	9.4	150
6 x 1	32 x 0.20	0.6	0.16	1.0	10.2	170
7 x 1	32 x 0.20	0.6	0.16	1.0	10.2	180
8 x 1	32 x 0.20	0.6	0.16	1.0	12.2	210
10 x 1	32 x 0.20	0.6	0.21	1.2	13.2	276
12 x 1	32 x 0.20	0.6	0.21	1.2	13.8	310
14 x 1	32 x 0.20	0.6	0.21	1.2	14.4	340
16 x 1	32 x 0.20	0.6	0.21	1.5	15.8	400
20 x 1	32 x 0.20	0.6	0.21	1.5	17.8	480
24 x 1	32 x 0.20	0.6	0.21	1.8	19.8	560
27 x 1	32 x 0.20	0.6	0.21	1.8	20.0	600
30 x 1	32 x 0.20	0.6	0.21	1.8	20.6	660
34 x 1	32 x 0.20	0.6	0.21	1.8	22.2	780
37 x 1	32 x 0.20	0.6	0.26	1.8	22.5	820
40 x 1	32 x 0.20	0.6	0.26	2.1	24.2	880
50 x 1	32 x 0.20	0.6	0.26	2.1	26.4	1100
61 x 1	32 x 0.20	0.6	0.26	2.2	28.2	1300
2 x 1.5	30 x 0.25	0.6	0.16	0.8	8.0	112
3 x 1.5	30 x 0.25	0.6	0.16	0.8	8.5	135
4 x 1.5	30 x 0.25	0.6	0.16	1.0	9.6	165
5 x 1.5	30 x 0.25	0.6	0.16	1.0	10.2	200
6 x 1.5	30 x 0.25	0.6	0.16	1.2	11.6	240
7 x 1.5	30 x 0.25	0.6	0.16	1.2	11.8	250
8 x 1.5	30 x 0.25	0.6	0.16	1.2	13.8	280
10 x 1.5	30 x 0.25	0.6	0.21	1.2	14.6	360
12 x 1.5	30 x 0.25	0.6	0.21	1.2	15.2	410
14 x 1.5	30 x 0.25	0.6	0.21	1.5	16.4	480
16 x 1.5	30 x 0.25	0.6	0.21	1.5	17.2	530
20 x 1.5	30 x 0.25	0.6	0.21	1.8	20	650
24 x 1.5	30 x 0.25	0.6	0.21	1.8	21.4	770
27 x 1.5	30 x 0.25	0.6	0.21	1.8	21.6	860
30 x 1.5	30 x 0.25	0.6	0.21	1.8	22.4	950
34 x 1.5	30 x 0.25	0.6	0.26	1.8	24.4	1120
37 x 1.5	30 x 0.25	0.6	0.26	1.8	24.6	1150
40 x 1.5	30 x 0.25	0.6	0.26	2	26.2	1250
50 x 1.5	30 x 0.25	0.6	0.26	2.1	29	1580
61 x 1.5	30 x 0.25	0.6	0.26	2.1	30.8	1780
2 x 2.5	50 x 0.25	0.7	0.16	1	9.4	150
3 x 2.5	50 x 0.25	0.7	0.16	1	10.2	185
4 x 2.5	50 x 0.25	0.7	0.16	1.2	11.4	240
5 x 2.5	50 x 0.25	0.7	0.21	1.2	12.6	290
6 x 2.5	50 x 0.25	0.7	0.21	1.2	13.4	370
7 x 2.5	50 x 0.25	0.7	0.21	1.2	13.4	380
8 x 2.5	50 x 0.25	0.7	0.21	1.5	17	440
10 x 2.5	50 x 0.25	0.7	0.21	1.5	17.8	555
12 x 2.5	50 x 0.25	0.7	0.21	1.5	18.1	630
14 x 2.5	50 x 0.25	0.7	0.21	1.6	19.4	710
16 x 2.5	50 x 0.25	0.7	0.21	1.8	20.6	810
20 x 2.5	50 x 0.25	0.7	0.26	1.8	23.6	980
24 x 2.5	50 x 0.25	0.7	0.26	1.8	26	1180
27 x 2.5	50 x 0.25	0.7	0.26	2.1	26.4	1330
30 x 2.5	50 x 0.25	0.7	0.26	2.1	27.2	1460
34 x 2.5	50 x 0.25	0.7	0.26	2.1	29.4	1670
37 x 2.5	50 x 0.25	0.7	0.26	2.1	29.6	1720
40 x 2.5	50 x 0.25	0.7	0.31	2.3	31.5	1830
50 x 2.5	50 x 0.25	0.7	0.31	2.4	35	2320
61 x 2.5	50 x 0.25	0.7	0.31	2.7	37.5	2670
