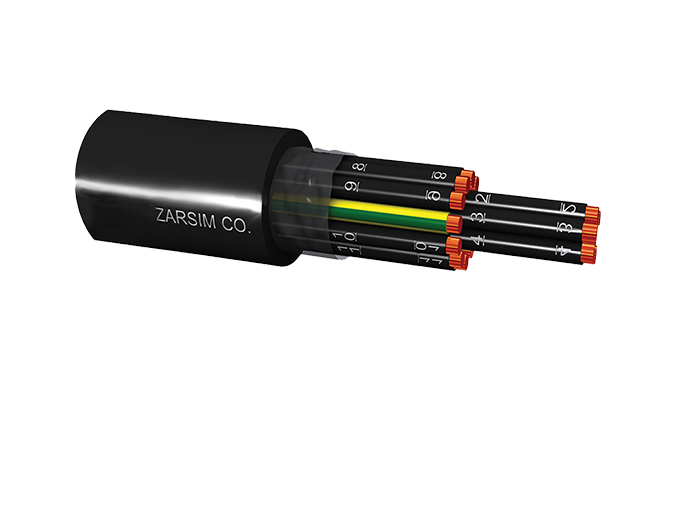

PVC insulated, PVC sheathed, flexible control cable, 300/500 V

Application

■ For interconnection of machine parts and for direct connection to the mains.

Standard

■ ISIRI (607)75
■ IEC (60227)75
■ DIN VDE 0245

Construction

■ Plain annealed copper conductor, class 5.
■ PVC insulation, type D.
■ Cores twisted together, if necessary in several concentric layers.
■ Polyester tape if necessary.
■ PVC sheath type ST9.

General specification

■ Rated voltage: 300/500 V.
■ Working temperature: Max. 70°C.
■ Resistant to oil.
■ Code designation: NYSLY-JZ/-OZ.

Cross-sectional area Nom. (mm²)	No. of wires x diameter Nom. (mm)	Insulation thickness (mm)	Sheath thickness (mm)	Overall diameter (mm)	Weight Approx. (kg/km)
2 x 0.5	16 x 0.20	0.6	0.7	6.0	50
3 x 0.5	16 x 0.20	0.6	0.7	6.3	60
4 x 0.5	16 x 0.20	0.6	0.8	7.0	73
5 x 0.5	16 x 0.20	0.6	0.8	7.7	84
6 x 0.5	16 x 0.20	0.6	0.9	8.5	102
7 x 0.5	16 x 0.20	0.6	0.9	9.5	116
8 x 0.5	16 x 0.20	0.6	1.0	10.5	148
10 x 0.5	16 x 0.20	0.6	1.0	11.0	162
12 x 0.5	16 x 0.20	0.6	1.1	11.5	188
14 x 0.5	16 x 0.20	0.6	1.1	12.0	210
16 x 0.5	16 x 0.20	0.6	1.2	12.8	240
20 x 0.5	16 x 0.20	0.6	1.2	14.5	292
24 x 0.5	16 x 0.20	0.6	1.4	16.1	355
27 x 0.5	16 x 0.20	0.6	1.4	16.5	382
30 x 0.5	16 x 0.20	0.6	1.4	17.0	420
34 x 0.5	16 x 0.20	0.6	1.5	18.0	462
37 x 0.5	16 x 0.20	0.6	1.5	18.5	495
40 x 0.5	16 x 0.20	0.6	1.6	19.8	510
50 x 0.5	16 x 0.20	0.6	1.7	21.5	640
61 x 0.5	16 x 0.20	0.6	1.8	23.0	746
2 x 0.75	24 x 0.20	0.6	0.8	6.6	62
3 x 0.75	24 x 0.20	0.6	0.8	7.0	72
4 x 0.75	24 x 0.20	0.6	0.8	7.6	88
5 x 0.75	24 x 0.20	0.6	0.9	8.5	106
6 x 0.75	24 x 0.20	0.6	0.9	9.2	122
7 x 0.75	24 x 0.20	0.6	1.0	10.4	146
8 x 0.75	24 x 0.20	0.6	1.1	11.4	184
10 x 0.75	24 x 0.20	0.6	1.1	11.8	202
12 x 0.75	24 x 0.20	0.6	1.1	12.2	228
14 x 0.75	24 x 0.20	0.6	1.2	13.0	265
16 x 0.75	24 x 0.20	0.6	1.2	13.6	295
20 x 0.75	24 x 0.20	0.6	1.4	15.5	345
24 x 0.75	24 x 0.20	0.6	1.5	17.5	444
27 x 0.75	24 x 0.20	0.6	1.5	18.0	490
30 x 0.75	24 x 0.20	0.6	1.5	18.5	530
34 x 0.75	24 x 0.20	0.6	1.6	19.2	605
37 x 0.75	24 x 0.20	0.6	1.6	19.6	620
40 x 0.75	24 x 0.20	0.6	1.7	20.5	650
50 x 0.75	24 x 0.20	0.6	1.8	23.2	804
61 x 0.75	24 x 0.20	0.6	2.0	25.0	970
2 x 1	32 x 0.20	0.6	0.8	6.8	72
3 x 1	32 x 0.20	0.6	0.8	7.2	86
4 x 1	32 x 0.20	0.6	0.8	8.0	102
5 x 1	32 x 0.20	0.6	0.9	8.8	126
6 x 1	32 x 0.20	0.6	1.0	9.8	150
7 x 1	32 x 0.20	0.6	1.0	11.0	174
8 x 1	32 x 0.20	0.6	1.1	12.0	210
10 x 1	32 x 0.20	0.6	1.2	12.6	240
12 x 1	32 x 0.20	0.6	1.2	13.2	280
14 x 1	32 x 0.20	0.6	1.2	13.8	312
16 x 1	32 x 0.20	0.6	1.2	14.6	360
20 x 1	32 x 0.20	0.6	1.4	16.5	384
24 x 1	32 x 0.20	0.6	1.5	18.6	530
27 x 1	32 x 0.20	0.6	1.5	19.0	580
30 x 1	32 x 0.20	0.6	1.6	19.6	640
34 x 1	32 x 0.20	0.6	1.7	21.1	710
37 x 1	32 x 0.20	0.6	1.7	21.6	760
40 x 1	32 x 0.20	0.6	1.8	22.4	788
50 x 1	32 x 0.20	0.6	1.9	25.0	980
61 x 1	32 x 0.20	0.6	2.1	26.8	1150
2 x 1.5	30 x 0.25	0.6	0.8	7.2	84
3 x 1.5	30 x 0.25	0.6	0.8	7.7	104
4 x 1.5	30 x 0.25	0.6	1.0	8.8	135
5 x 1.5	30 x 0.25	0.6	1.0	9.6	164
6 x 1.5	30 x 0.25	0.6	1.0	10.4	198
7 x 1.5	30 x 0.25	0.6	1.2	10.8	215
8 x 1.5	30 x 0.25	0.6	1.2	13.0	285
10 x 1.5	30 x 0.25	0.6	1.2	13.6	300
12 x 1.5	30 x 0.25	0.6	1.2	14.0	345
14 x 1.5	30 x 0.25	0.6	1.4	15.2	385
16 x 1.5	30 x 0.25	0.6	1.5	16.2	470
20 x 1.5	30 x 0.25	0.6	1.6	18.6	605
24 x 1.5	30 x 0.25	0.6	1.8	20.5	695
27 x 1.5	30 x 0.25	0.6	1.8	21.0	760
30 x 1.5	30 x 0.25	0.6	1.8	21.6	835
34 x 1.5	30 x 0.25	0.6	1.8	23.2	970
37 x 1.5	30 x 0.25	0.6	2.0	23.2	1020
40 x 1.5	30 x 0.25	0.6	2.0	25.0	1105
50 x 1.5	30 x 0.25	0.6	2.1	27.8	1380
61 x 1.5	30 x 0.25	0.6	2.1	29.5	1620
2 x 2.5	50 x 0.25	0.7	0.9	8.8	127
3 x 2.5	50 x 0.25	0.7	1.0	9.6	162
4 x 2.5	50 x 0.25	0.7	1.2	10.9	210
5 x 2.5	50 x 0.25	0.7	1.2	11.9	260
6 x 2.5	50 x 0.25	0.7	1.2	13.0	305
7 x 2.5	50 x 0.25	0.7	1.2	13.0	320
8 x 2.5	50 x 0.25	0.7	1.4	16.1	420
10 x 2.5	50 x 0.25	0.7	1.5	17.0	470
12 x 2.5	50 x 0.25	0.7	1.5	17.6	545
14 x 2.5	50 x 0.25	0.7	1.6	18.8	615
16 x 2.5	50 x 0.25	0.7	1.7	20.0	720
20 x 2.5	50 x 0.25	0.7	1.8	23.0	910
24 x 2.5	50 x 0.25	0.7	2.0	25.0	1090
27 x 2.5	50 x 0.25	0.7	2.1	25.8	1140
30 x 2.5	50 x 0.25	0.7	2.1	26.8	1250
34 x 2.5	50 x 0.25	0.7	2.1	28.8	1520
37 x 2.5	50 x 0.25	0.7	2.3	28.8	1590
40 x 2.5	50 x 0.25	0.7	2.3	31.0	1770
50 x 2.5	50 x 0.25	0.7	2.4	34.4	2140
61 x 2.5	50 x 0.25	0.7	2.7	37.0	2560
