PVC insulated, inner sheath, PVC sheathed, flexible screened control cable, 300/500 V

Application

■ For electrical connection of production machines and machine tools if a certain amount of electronic screening is required. Shows some resistance to all purpose mineral oil.

Standard

■ ISIRI (607)74
■ IEC (60227)74
■ HD 21
■ VDE 0245

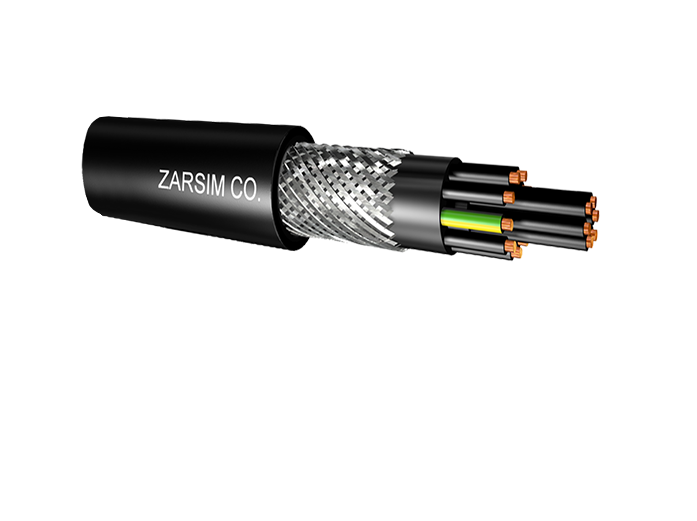

Construction

■ Plain annealed copper conductor, class 5.
■ PVC insulation, type D.
■ Cores twisted together, if necessary in several concentric layers.
■ PVC inner sheath type ST5.
■ Plain or tinned annealed copper braid.
■ PVC sheath type ST9.

General Specifications

■ Rated voltage: 300/500 V.
■ Working temperature: Max. 70°C.
■ Resistant to oil.
■ Code designation: YSLYCY-JZ/-OZ.

Cross-sectional area Nom. (mm²)	No. of wires x diameter Nom. (mm)	Insulation thickness (mm)	Inner sheath thickness (mm)	Screen wire diameter (mm)	Sheath thickness (mm)	Overall diameter (mm)	Weight Approx. (kg/km)
2 x 0.5	16 x 0.2	0.6	0.6	0.16	1.00	8.2	102
3 x 0.5	16 x 0.2	0.6	0.6	0.16	1.00	8.4	114
4 x 0.5	16 x 0.2	0.6	0.7	0.16	1.00	9.2	132
5 x 0.5	16 x 0.2	0.6	0.7	0.16	1.2	10.2	156
6 x 0.5	16 x 0.2	0.6	0.7	0.16	1.2	11.0	170
7 x 0.5	16 x 0.2	0.6	0.7	0.16	1.2	11.0	180
8 x 0.5	16 x 0.2	0.6	0.8	0.16	1.2	12.6	210
10 x 0.5	16 x 0.2	0.6	0.8	0.21	1.2	13.4	250
12 x 0.5	16 x 0.2	0.6	0.8	0.21	1.2	14.0	280
14 x 0.5	16 x 0.2	0.6	0.8	0.21	1.4	15.0	315
16 x 0.5	16 x 0.2	0.6	1.0	0.21	1.5	16.2	360
20 x 0.5	16 x 0.2	0.6	1.0	0.21	1.6	18.2	420
24 x 0.5	16 x 0.2	0.6	1.0	0.21	1.8	19.6	500
27 x 0.5	16 x 0.2	0.6	1.0	0.21	1.8	20.0	535
30 x 0.5	16 x 0.2	0.6	1.0	0.21	1.8	20.6	580
34 x 0.5	16 x 0.2	0.6	1.0	0.21	1.8	22.0	670
37 x 0.5	16 x 0.2	0.6	1.2	0.21	2.00	22.4	680
40 x 0.5	16 x 0.2	0.6	1.2	0.26	2.00	24.0	725
50 x 0.5	16 x 0.2	0.6	1.2	0.26	2.1	26.2	910
61 x 0.5	16 x 0.2	0.6	1.2	0.26	2.1	27.6	1060
2 x 0.75	24 x 0.2	0.6	0.6	0.16	1.00	8.4	125
3 x 0.75	24 x 0.2	0.6	0.6	0.16	1.00	8.8	132
4 x 0.75	24 x 0.2	0.6	0.7	0.16	1.2	10.0	154
5 x 0.75	24 x 0.2	0.6	0.7	0.16	1.2	10.6	180
6 x 0.75	24 x 0.2	0.6	0.7	0.16	1.2	11.3	210
7 x 0.75	24 x 0.2	0.6	0.7	0.16	1.2	11.3	210
8 x 0.75	24 x 0.2	0.6	0.8	0.16	1.2	13.2	240
10 x 0.75	24 x 0.2	0.6	0.8	0.21	1.2	14.0	310
12 x 0.75	24 x 0.2	0.6	0.8	0.21	1.2	14.4	355
14 x 0.75	24 x 0.2	0.6	1.0	0.21	1.4	15.8	392
16 x 0.75	24 x 0.2	0.6	1.0	0.21	1.5	16.6	432
20 x 0.75	24 x 0.2	0.6	1.0	0.21	1.5	18.5	500
24 x 0.75	24 x 0.2	0.6	1.0	0.21	1.8	20.2	610
27 x 0.75	24 x 0.2	0.6	1.0	0.21	1.8	20.6	660
30 x 0.75	24 x 0.2	0.6	1.2	0.21	1.8	21.6	705
34 x 0.75	24 x 0.2	0.6	1.2	0.21	1.8	23.0	790
37 x 0.75	24 x 0.2	0.6	1.2	0.21	1.8	23.0	820
40 x 0.75	24 x 0.2	0.6	1.2	0.26	2.0	24.6	880
50 x 0.75	24 x 0.2	0.6	1.2	0.26	2.1	27.0	1120
61 x 0.75	24 x 0.2	0.6	1.4	0.26	2.1	28.8	1300
2 x 1	32 x 0.2	0.6	0.7	0.16	1.0	9.0	130
3 x 1	32 x 0.2	0.6	0.7	0.16	1.0	9.4	150
4 x 1	32 x 0.2	0.6	0.7	0.16	1.2	10.5	175
5 x 1	32 x 0.2	0.6	0.7	0.16	1.2	11.2	205
6 x 1	32 x 0.2	0.6	0.7	0.16	1.2	12.0	230
7 x 1	32 x 0.2	0.6	0.7	0.16	1.2	12.0	240
8 x 1	32 x 0.2	0.6	1.0	0.16	1.2	14.5	280
10 x 1	32 x 0.2	0.6	1.0	0.21	1.2	15.2	360
12 x 1	32 x 0.2	0.6	1.0	0.21	1.5	16.2	410
14 x 1	32 x 0.2	0.6	1.0	0.21	1.5	16.9	450
16 x 1	32 x 0.2	0.6	1.0	0.21	1.8	18.2	505
20 x 1	32 x 0.2	0.6	1.0	0.21	1.8	20.2	610
24 x 1	32 x 0.2	0.6	1.2	0.21	1.8	22.0	715
27 x 1	32 x 0.2	0.6	1.2	0.21	1.8	22.2	760
30 x 1	32 x 0.2	0.6	1.2	0.21	2.0	23.3	820
34 x 1	32 x 0.2	0.6	1.2	0.21	2.1	25.0	940
37 x 1	32 x 0.2	0.6	1.2	0.26	2.1	25.2	994
40 x 1	32 x 0.2	0.6	1.4	0.26	2.1	26.8	1060
50 x 1	32 x 0.2	0.6	1.4	0.26	2.1	29.0	1320
61 x 1	32 x 0.2	0.6	1.4	0.26	2.4	31.2	1530
2 x 1.5	30 x 0.25	0.6	0.7	0.16	1.2	10.0	170
3 x 1.5	30 x 0.25	0.6	0.7	0.16	1.2	10.5	194
4 x 1.5	30 x 0.25	0.6	0.7	0.16	1.2	11.2	230
5 x 1.5	30 x 0.25	0.6	0.7	0.16	1.2	12.0	280
6 x 1.5	30 x 0.25	0.6	0.8	0.16	1.2	13.0	328
7 x 1.5	30 x 0.25	0.6	0.8	0.16	1.2	13.0	340
8 x 1.5	30 x 0.25	0.6	0.8	0.16	1.2	15.2	376
10 x 1.5	30 x 0.25	0.6	1.0	0.21	1.5	17.0	480
12 x 1.5	30 x 0.25	0.6	1.0	0.21	1.5	17.5	520
14 x 1.5	30 x 0.25	0.6	1.0	0.21	1.5	18.2	616
16 x 1.5	30 x 0.25	0.6	1.0	0.21	1.8	19.6	690
20 x 1.5	30 x 0.25	0.6	1.2	0.21	1.8	22.2	850
24 x 1.5	30 x 0.25	0.6	1.2	0.21	2.1	24.2	980
27 x 1.5	30 x 0.25	0.6	1.2	0.21	2.1	24.6	1050
30 x 1.5	30 x 0.25	0.6	1.2	0.21	2.1	25.4	1145
34 x 1.5	30 x 0.25	0.6	1.2	0.26	2.1	27.2	1350
37 x 1.5	30 x 0.25	0.6	1.2	0.26	2.1	27.2	1390
40 x 1.5	30 x 0.25	0.6	1.4	0.26	2.3	29.4	1490
50 x 1.5	30 x 0.25	0.6	1.4	0.26	2.4	32.2	1810
61 x 1.5	30 x 0.25	0.6	1.4	0.26	2.4	34.0	2100
2 x 2.5	50 x 0.25	0.7	0.7	0.16	1.2	11.2	228
3 x 2.5	50 x 0.25	0.7	0.7	0.16	1.2	11.8	260
4 x 2.5	50 x 0.25	0.7	0.8	0.16	1.2	12.8	320
5 x 2.5	50 x 0.25	0.7	0.8	0.21	1.2	14.0	386
6 x 2.5	50 x 0.25	0.7	0.8	0.21	1.2	14.8	470
7 x 2.5	50 x 0.25	0.7	0.8	0.21	1.2	14.8	486
8 x 2.5	50 x 0.25	0.7	1.0	0.21	1.6	19.0	550
10 x 2.5	50 x 0.25	0.7	1.0	0.21	1.6	19.8	710
12 x 2.5	50 x 0.25	0.7	1.0	0.21	1.8	20.5	780
14 x 2.5	50 x 0.25	0.7	1.0	0.21	1.8	21.5	870
16 x 2.5	50 x 0.25	0.7	1.2	0.21	2.0	23.2	985
20 x 2.5	50 x 0.25	0.7	1.2	0.26	2.1	26.4	1130
24 x 2.5	50 x 0.25	0.7	1.4	0.26	2.1	28.5	1430
27 x 2.5	50 x 0.25	0.7	1.4	0.26	2.1	29.0	1570
30 x 2.5	50 x 0.25	0.7	1.4	0.26	2.2	30.0	1700
34 x 2.5	50 x 0.25	0.7	1.4	0.26	2.4	32.5	1950
37 x 2.5	50 x 0.25	0.7	1.4	0.26	2.4	32.5	2010
40 x 2.5	50 x 0.25	0.7	1.6	0.31	2.7	35.3	2140
50 x 2.5	50 x 0.25	0.7	1.6	0.31	2.7	38.5	2640
61 x 2.5	50 x 0.25	0.7	1.6	0.31	2.7	40.5	3030
