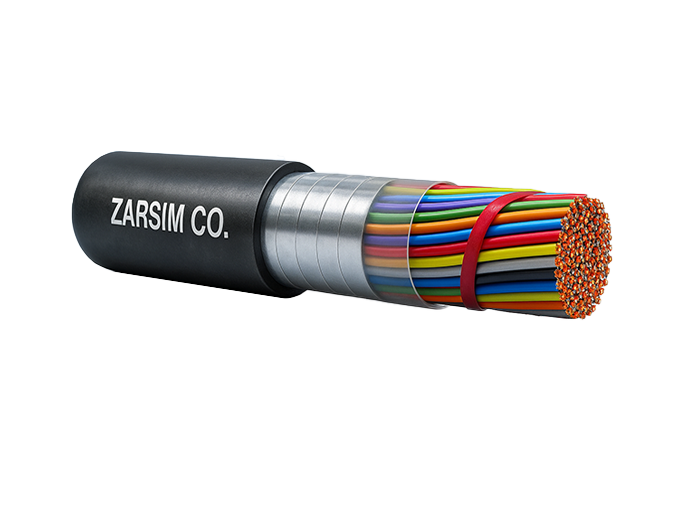

■ For transmission of signals in external networks, in open spaces or underground laying.
■ TCI specification.
■ VDE 0816
■ Solid plain annealed copper conductor.
■ PE insulation type III, class B, category 4 or 5 & grade E8 ASTM D 1248.
■ Polyester tape.
■ Aluminum foil.
■ PE sheath type I, class C, category 4 or 5 & grade J3 ASTM D 1248.
■ Working temperature: Max. 70°C.
■ Code designation: A2Y (St) 2Y.
| Cable size | Insulation thickness (mm) | Sheath thickness (mm) | Overall diameter (mm) | Weight Approx. (kg/km) |
|---|---|---|---|---|
| 2 x 2 x 0.4 | 0.18 | 1.0 | 4.2 | 26 |
| 4 x 2 x 0.4 | 0.18 | 1.0 | 5.0 | 43 |
| 6 x 2 x 0.4 | 0.18 | 1.0 | 5.6 | 50 |
| 8 x 2 x 0.4 | 0.18 | 1.0 | 6.1 | 61 |
| 10 x 2 x 0.4 | 0.18 | 1.0 | 6.6 | 73 |
| 2 x 2 x 0.6 | 0.21 | 1.0 | 5.1 | 30 |
| 4 x 2 x 0.6 | 0.21 | 1.0 | 6.4 | 47 |
| 6 x 2 x 0.6 | 0.21 | 1.0 | 7.3 | 66 |
| 8 x 2 x 0.6 | 0.21 | 1.0 | 8.1 | 85 |
| 10 x 2 x 0.6 | 0.21 | 1.0 | 8.8 | 104 |
| 15 x 2 x 0.6 | 0.21 | 1.1 | 9.8 | 127 |
| 20 x 2 x 0.6 | 0.21 | 1.2 | 11.5 | 171 |
| 25 x 2 x 0.6 | 0.21 | 1.2 | 12.5 | 209 |
| 30 x 2 x 0.6 | 0.21 | 1.2 | 14.0 | 253 |
| 40 x 2 x 0.6 | 0.21 | 1.2 | 15.7 | 326 |
| 50 x 2 x 0.6 | 0.21 | 1.2 | 17.3 | 399 |
| 70 x 2 x 0.6 | 0.21 | 1.4 | 20.4 | 555 |
| 100 x 2 x 0.6 | 0.21 | 1.4 | 23.8 | 771 |
| 2 x 2 x 0.8 | 0.3 | 1.0 | 5.8 | 41 |
| 4 x 2 x 0.8 | 0.3 | 1.0 | 7.4 | 69 |
| 6 x 2 x 0.8 | 0.3 | 1.0 | 8.5 | 96 |
| 10 x 2 x 0.8 | 0.3 | 1.2 | 10.7 | 153 |
| 20 x 2 x 0.8 | 0.3 | 1.2 | 14.1 | 280 |
| 30 x 2 x 0.8 | 0.3 | 1.2 | 16.7 | 404 |
| 40 x 2 x 0.8 | 0.3 | 1.4 | 19.3 | 538 |
| 50 x 2 x 0.8 | 0.3 | 1.4 | 21.2 | 660 |
| 70 x 2 x 0.8 | 0.3 | 1.4 | 24.5 | 902 |
| 100 x 2 x 0.8 | 0.3 | 1.6 | 29.1 | 1279 |
