■ For installation in domestic environment, kitchen, office and household appliances, also in humid conditions, as well as connection subject to medium mechanical stress (e.g. washing-machines, hair-dryers, fridges). Also, they can be used for kitchen or heating appliances, if cable is not in direct contact with hot surfaces nor exposed to thermal radiation. Not suitable for industrial or agricultural workshops and non-domestic apparatus. Suitable where heat resistance is required.
■ Minimum bending radius: 10 times of maximum overall diameter for mobile service and 4 times of maximum overall diameter for fixed installation.
■ ISIRI (607)57
■ IEC (60227)57
■ BS 6500
■ HD 21

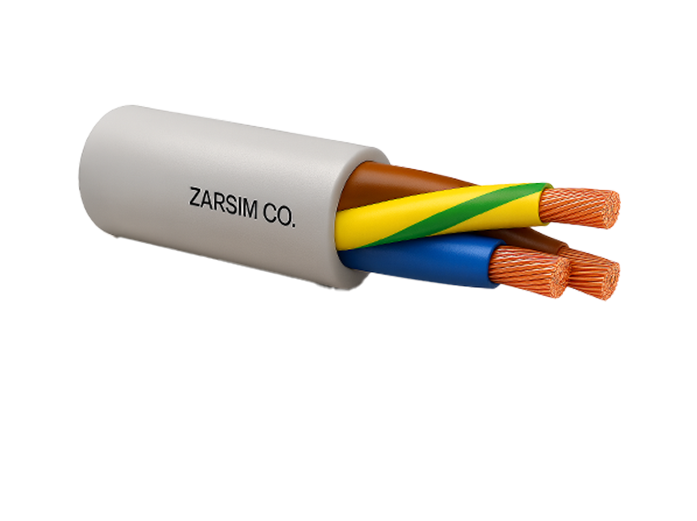

■ Annealed stranded copper conductor, class 5.
■ PVC insulation, type E.
■ Cores twisted together for circular cords or laid parallel for flat cords.
■ PVC sheath type ST10.
■ Rated voltage: 300/500 V.
■ Working temperature: Max. 90°C.
■ Harmonized code designation: H05V2V2-F, H05V2V2H2-F.
| Cross-sectional area Nom. (mm²) | No. of wires x diameter Nom. (mm) | Insulation thickness (mm) | Sheath thickness (mm) | Overall dimension (mm) | Insulation resistance at 90°C Min. (MΩ.km) | Weight Approx. (kg/km) | Conductor resistance at 20°C Max. (Ω/km) |
|---|---|---|---|---|---|---|---|
| 2 x 0.75 | 24 x 0.20 | 0.6 | 0.8 | 6.3 or. 4.0 x 6.5 | 0.011 | 43 | 26.0 |
| 2 x 1 | 32 x 0.20 | 0.6 | 0.8 | 6.6 | 0.010 | 62 | 19.5 |
| 2 x 1.5 | 30 x 0.25 | 0.7 | 0.8 | 7.6 | 0.010 | 80 | 13.3 |
| 2 x 2.5 | 50 x 0.25 | 0.8 | 1.0 | 9.4 | 0.009 | 130 | 8.0 |
| 3 x 0.75 | 24 x 0.20 | 0.6 | 0.8 | 6.7 | 0.011 | 62 | 26.0 |
| 3 x 1 | 32 x 0.20 | 0.6 | 0.8 | 7.0 | 0.010 | 74 | 19.5 |
| 3 x 1.5 | 30 x 0.25 | 0.7 | 0.9 | 8.3 | 0.010 | 99 | 13.3 |
| 3 x 2.5 | 50 x 0.25 | 0.8 | 1.1 | 10.2 | 0.009 | 165 | 8.0 |
| 4 x 0.75 | 24 x 0.20 | 0.6 | 0.8 | 7.3 | 0.011 | 63 | 26.0 |
| 4 x 1 | 32 x 0.20 | 0.6 | 0.9 | 7.9 | 0.010 | 97 | 19.5 |
| 4 x 1.5 | 30 x 0.25 | 0.7 | 1.0 | 9.3 | 0.010 | 131 | 13.3 |
| 4 x 2.5 | 50 x 0.25 | 0.8 | 1.1 | 11.2 | 0.009 | 205 | 8.0 |
| 5 x 0.75 | 24 x 0.20 | 0.6 | 0.9 | 8.2 | 0.011 | 96 | 26.0 |
| 5 x 1 | 32 x 0.20 | 0.6 | 0.9 | 8.7 | 0.010 | 119 | 19.5 |
| 5 x 1.5 | 30 x 0.25 | 0.7 | 1.1 | 10.3 | 0.010 | 158 | 13.3 |
| 5 x 2.5 | 50 x 0.25 | 0.8 | 1.2 | 12.4 | 0.009 | 267 | 8.0 |
