■ For supplying energy electrical in open air, underground, water, indoors, cable ducts, power stations, etc., where mechanical damages are not to be expected.
■ VDE 0271
■ IEC 60502-1
■ ISIRI 3569-1

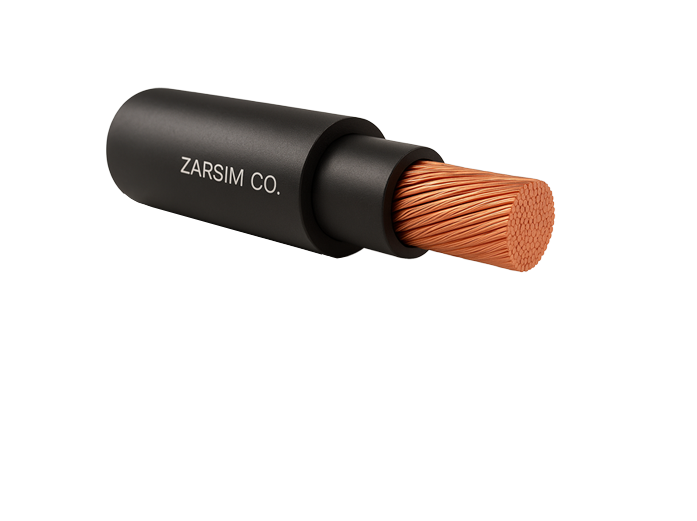

■ Plain annealed copper conductor, class 1 & 2 *.
■ PVC insulation, type A.
■ Cores twisted together.
■ PVC inner covering applicable to cables 16mm² and above.
■ PVC sheath, type ST1.
■ Rated voltage: 0.6/1 kV.
■ Working temperature: Max. 70°C.
■ Code designation: NYY.
*: Class 5 can be supplied upon request.
| Cross-sectional area Nom. (mm²) | No. of wires x diameter Nom. (mm) | Insulation thickness (mm) | Sheath thickness (mm) | Overall diameter (mm) | Weight Approx. (kg/km) |
|---|---|---|---|---|---|
| 1 x 4 re | 1 x 2.26 | 1.0 | 1.4 | 7.1 | 82 |
| 1 x 4 rm | 7 x 0.85 | 1.0 | 1.4 | 7.4 | 86 |
| 1 x 6 re | 1 x 2.78 | 1.0 | 1.4 | 7.6 | 108 |
| 1 x 6 rm | 7 x 1.04 | 1.0 | 1.4 | 7.9 | 116 |
| 1 x 10 re | 1 x 3.57 | 1.0 | 1.4 | 8.4 | 152 |
| 1 x 10 rm | 7 x 1.35 | 1.0 | 1.4 | 8.9 | 162 |
| 1 x 16 rm | 7 x 1.70 | 1.0 | 1.4 | 9.9 | 226 |
| 1 x 25 rm | 7 x 2.14 | 1.2 | 1.4 | 11.6 | 337 |
| 1 x 35 rm | 7 x 2.52 | 1.2 | 1.4 | 12.8 | 437 |
| 1 x 50 rm | 19 x 1.78 | 1.4 | 1.4 | 14.5 | 577 |
| 1 x 70 rm | 19 x 2.17 | 1.4 | 1.4 | 16.7 | 785 |
| 1 x 95 rm | 19 x 2.52 | 1.6 | 1.5 | 18.9 | 1080 |
| 1 x 120 rm | 37 x 2.03 | 1.6 | 1.5 | 20.6 | 1325 |
| 1 x 150 rm | 37 x 2.25 | 1.8 | 1.6 | 22.8 | 1618 |
| 1 x 185 rm | 37 x 2.52 | 2.0 | 1.7 | 25.2 | 2050 |
| 1 x 240 rm | 37 x 2.88 | 2.2 | 1.8 | 28.5 | 2630 |
| Cross-sectional area Nom. (mm²) | No. of wires x diameter Nom. (mm) | Insulation thickness (mm) | Sheath thickness (mm) | Overall diameter (mm) | Weight Approx. (kg/km) |
| 1 x 4 | 56 x 0.3 | 1.0 | 1.4 | 7.0 | 84 |
| 1 x 6 | 84 x 0.3 | 1.0 | 1.4 | 7.6 | 107 |
| 1 x 10 | 80 x 0.4 | 1.0 | 1.4 | 9.0 | 164 |
| 1 x 16 | 126 x 0.4 | 1.0 | 1.4 | 10.2 | 230 |
| 1 x 25 | 196 x 0.4 | 1.2 | 1.4 | 12.6 | 341 |
| 1 x 35 | 278 x 0.4 | 1.2 | 1.4 | 13.9 | 450 |
| 1 x 50 | 398 x 0.4 | 1.4 | 1.4 | 16.3 | 609 |
| 1 x 70 | 357 x 0.5 | 1.4 | 1.5 | 18.2 | 845 |
| 1 x 95 | 484 x 0.5 | 1.6 | 1.6 | 21.0 | 1111 |
| 1 x 120 | 612 x 0.5 | 1.6 | 1.7 | 23.0 | 1380 |
| 1 x 150 | 765 x 0.5 | 1.8 | 1.8 | 25.4 | 1712 |
| 1 x 185 | 943 x 0.5 | 2.0 | 1.9 | 28.3 | 2100 |
| 1 x 240 | 1224 x 0.5 | 2.2 | 2.0 | 31.8 | 2725 |
| 2 x 1.5 re | 1 x 1.38 | 0.8 | 1.8 | 11.4 | 190 |
| 2 x 1.5 rm | 7 x 0.53 | 0.8 | 1.8 | 12.0 | 196 |
| 2 x 2.5 re | 1 x 1.78 | 0.8 | 1.8 | 12.4 | 230 |
| 2 x 2.5 rm | 7 x 0.67 | 0.8 | 1.8 | 12.8 | 240 |
| 2 x 4 re | 1 x 2.26 | 1.0 | 1.8 | 13.8 | 284 |
| 2 x 4 rm | 7 x 0.85 | 1.0 | 1.8 | 14.6 | 300 |
| 2 x 6 re | 1 x 2.78 | 1.0 | 1.8 | 14.8 | 380 |
| 2 x 6 rm | 7 x 1.04 | 1.0 | 1.8 | 15.6 | 396 |
| 2 x 10 re | 1 x 3.57 | 1.0 | 1.8 | 16.4 | 500 |
| 2 x 10 rm | 7 x 1.35 | 1.0 | 1.8 | 17.5 | 520 |
| 2 x 16 rm | 7 x 1.70 | 1.0 | 1.8 | 19.8 | 710 |
| 2 x 25 rm | 7 x 2.14 | 1.2 | 1.8 | 23.2 | 1020 |
| 2 x 35 rm | 7 x 2.52 | 1.2 | 1.8 | 25.2 | 1300 |
| 2 x 50 rm | 19 x 1.78 | 1.4 | 1.8 | 29.0 | 1720 |
| 3 x 1.5 re | 1 x 1.38 | 0.8 | 1.8 | 12.0 | 215 |
| 3 x 1.5 rm | 7 x 0.53 | 0.8 | 1.8 | 12.4 | 220 |
| 3 x 2.5 re | 1 x 1.78 | 0.8 | 1.8 | 13.0 | 265 |
| 3 x 2.5 rm | 7 x 0.67 | 0.8 | 1.8 | 13.4 | 275 |
| 3 x 4 re | 1 x 2.26 | 1.0 | 1.8 | 14.5 | 350 |
| 3 x 4 rm | 7 x 0.85 | 1.0 | 1.8 | 15.4 | 370 |
| 3 x 6 re | 1 x 2.78 | 1.0 | 1.8 | 15.6 | 440 |
| 3 x 6 rm | 7 x 1.04 | 1.0 | 1.8 | 16.6 | 460 |
| 3 x 10 re | 1 x 3.57 | 1.0 | 1.8 | 17.4 | 610 |
| 3 x 10 rm | 7 x 1.35 | 1.0 | 1.8 | 18.6 | 630 |
| 3 x 16 rm | 7 x 1.70 | 1.0 | 1.8 | 21.0 | 870 |
| 3 x 25 rm | 7 x 2.14 | 1.2 | 1.8 | 24.6 | 1260 |
| 3 x 35 rm | 7 x 2.52 | 1.2 | 1.8 | 27.0 | 1620 |
| 3 x 25 / 16 rm | 7 x 2.14 7 x 1.70 | 1.2 1.0 | 1.8 | 26.2 | 1470 |
| 3 x 35 / 16 rm | 7 x 2.52 7 x 1.70 | 1.2 1.0 | 1.8 | 28.0 | 1800 |
| 4 x 1.5 re | 1 x 1.38 | 0.8 | 1.8 | 13.0 | 250 |
| 4 x 1.5 rm | 7 x 0.53 | 0.8 | 1.8 | 13.4 | 260 |
| 4 x 2.5 re | 1 x 1.78 | 0.8 | 1.8 | 14.0 | 310 |
| 4 x 2.5 rm | 7 x 0.67 | 0.8 | 1.8 | 14.5 | 325 |
| 4 x 4 re | 1 x 2.26 | 1.0 | 1.8 | 15.6 | 430 |
| 4 x 4 rm | 7 x 0.85 | 1.0 | 1.8 | 16.6 | 448 |
| 4 x 6 re | 1 x 2.78 | 1.0 | 1.8 | 16.8 | 540 |
| 4 x 6 rm | 7 x 1.04 | 1.0 | 1.8 | 18.0 | 560 |
| 4 x 10 re | 1 x 3.57 | 1.0 | 1.8 | 18.8 | 740 |
| 4 x 10 rm | 7 x 1.35 | 1.0 | 1.8 | 20.3 | 760 |
| 4 x 16 rm | 7 x 1.70 | 1.0 | 1.8 | 22.8 | 1060 |
| 4 x 25 rm | 7 x 2.14 | 1.2 | 1.8 | 25.5 | 1580 |
| 4 x 35 rm | 7 x 2.52 | 1.2 | 1.8 | 27.8 | 2060 |
| 5 x 1.5 re | 1 x 1.38 | 0.8 | 1.8 | 13.7 | 280 |
| 5 x 1.5 rm | 7 x 0.53 | 0.8 | 1.8 | 14.1 | 296 |
| 5 x 2.5 re | 1 x 1.78 | 0.8 | 1.8 | 14.8 | 364 |
| 5 x 2.5 rm | 7 x 0.67 | 0.8 | 1.8 | 15.3 | 378 |
| 5 x 4 re | 1 x 2.26 | 1.0 | 1.8 | 17.2 | 492 |
| 5 x 4 rm | 7 x 0.85 | 1.0 | 1.8 | 17.9 | 512 |
| 5 x 6 re | 1 x 2.78 | 1.0 | 1.8 | 18.6 | 628 |
| 5 x 6 rm | 7 x 1.04 | 1.0 | 1.8 | 19.4 | 644 |
| 5 x 10 re | 1 x 3.57 | 1.0 | 1.8 | 20.7 | 892 |
| 5 x 10 rm | 7 x 1.35 | 1.0 | 1.8 | 22.0 | 922 |
| 5 x 16 rm | 7 x 1.70 | 1.0 | 1.8 | 24.8 | 1296 |
| 5 x 25 rm | 7 x 2.14 | 1.2 | 1.9 | 29.5 | 1930 |
| Cross-sectional area Nom. (mm²) | No. of wires x diameter Nom. (mm) | Insulation thickness (mm) | Sheath thickness (mm) | Overall diameter (mm) | Weight Approx. (kg/km) |
| 2 x 1.5 | 30 x 0.25 | 0.8 | 1.8 | 10.0 | 134 |
| 2 x 2.5 | 50 x 0.25 | 0.8 | 1.8 | 11.0 | 174 |
| 2 x 4 | 56 x 0.30 | 1.0 | 1.8 | 12.0 | 221 |
| 2 x 6 | 84 x 0.30 | 1.0 | 1.8 | 13.2 | 284 |
| 2 x 10 | 80 x 0.40 | 1.0 | 1.8 | 15.8 | 460 |
| 2 x 16 | 126 x 0.40 | 1.0 | 1.8 | 17.8 | 660 |
| 2 x 25 | 196 x 0.40 | 1.2 | 1.8 | 25.4 | 1150 |
| 2 x 35 | 278 x 0.40 | 1.2 | 1.8 | 28.0 | 1470 |
| 2 x 50 | 398 x 0.40 | 1.4 | 2.0 | 32.5 | 1990 |
| 3 x 1.5 | 30 x 0.25 | 0.8 | 1.8 | 10.5 | 132 |
| 3 x 2.5 | 50 x 0.25 | 0.8 | 1.8 | 11.5 | 204 |
| 3 x 4 | 56 x 0.30 | 1.0 | 1.8 | 12.7 | 270 |
| 3 x 6 | 84 x 0.30 | 1.0 | 1.8 | 14.0 | 360 |
| 3 x 10 | 80 x 0.40 | 1.0 | 1.8 | 16.8 | 540 |
| 3 x 16 | 126 x 0.40 | 1.0 | 1.8 | 19.0 | 756 |
| 3 x 25 | 196 x 0.40 | 1.2 | 1.8 | 26.0 | 1350 |
| 3 x 35 | 278 x 0.40 | 1.2 | 1.9 | 30.0 | 1790 |
| 3 x 25 / 16 | 196 x 0.40 126 x 0.40 | 1.2 1.0 | 1.9 | 28.0 | 1520 |
| 3 x 35 / 16 | 278 x 0.40 126 x 0.40 | 1.2 1.1 | 2.0 | 31.0 | 1940 |
| 4 x 1.5 | 30 x 0.25 | 0.8 | 1.8 | 11.3 | 185 |
| 4 x 2.5 | 50 x 0.25 | 0.8 | 1.8 | 12.4 | 246 |
| 4 x 4 | 56 x 0.30 | 1.0 | 1.8 | 13.8 | 325 |
| 4 x 6 | 84 x 0.30 | 1.0 | 1.8 | 15.2 | 425 |
| 4 x 10 | 80 x 0.40 | 1.0 | 1.8 | 18.4 | 670 |
| 4 x 16 | 126 x 0.40 | 1.0 | 1.8 | 20.8 | 950 |
| 4 x 25 | 196 x 0.40 | 1.2 | 1.9 | 29.0 | 1670 |
| 4 x 35 | 278 x 0.40 | 1.2 | 2.0 | 32.6 | 2220 |
| 5 x 1.5 | 30 x 0.25 | 0.8 | 1.8 | 12.3 | 226 |
| 5 x 2.5 | 50 x 0.25 | 0.8 | 1.8 | 13.5 | 300 |
| 5 x 4 | 56 x 0.30 | 1.0 | 1.8 | 15.0 | 434 |
| 5 x 6 | 84 x 0.30 | 1.0 | 1.8 | 16.6 | 564 |
| 5 x 10 | 80 x 0.40 | 1.0 | 1.8 | 20.4 | 845 |
| 5 x 16 | 126 x 0.40 | 1.0 | 1.8 | 23.6 | 1190 |
| 5 x 25 | 196 x 0.40 | 1.2 | 1.9 | 32.4 | 2110 |
| 5 x 35 | 278 x 0.40 | 1.2 | 2.2 | 36.2 | 2710 |
