■ In dry, damp and wet locations, on premises and outdoors. For permanent installation above, on, in and under plaster. Not suitable for imbedding in concrete.
■ ISIRI (607)10
■ IEC (60227)10
■ BS 6004
■ HD 21

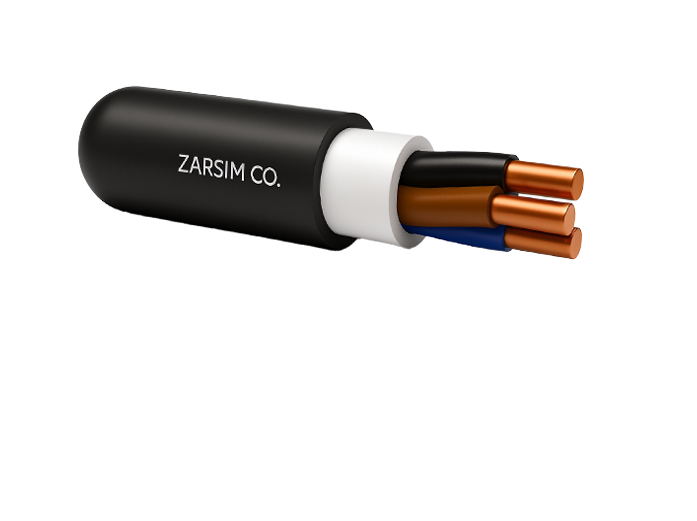

■ Annealed solid or stranded copper conductor, class 1 & 2.
■ PVC insulation, type C.
■ Cores twisted together.
■ Inner covering filling compound.
■ PVC sheath type ST4.
■ Rated voltage: 300/500 V.
■ Working temperature: Max. 70°C.
| Cross-sectional area Nom. (mm²) | No. of wires × diameter Nom. (mm) | Insulation thickness (mm) | Sheath thickness (mm) | Overall diameter (mm) | Insulation resistance at 70°C Min. (MΩ·km) | Weight Approx. (kg/km) | Conductor resistance at 20°C Max. (Ω/km) |
|---|---|---|---|---|---|---|---|
| 2 × 1.5 | 1 × 1.38 | 0.7 | 1.2 | 8.7 | 0.011 | 116 | 12.1 |
| 2 × 1.5 | 7 × 0.52 | 0.7 | 1.2 | 9.0 | 0.010 | 120 | 12.1 |
| 2 × 2.5 | 1 × 1.78 | 0.8 | 1.2 | 9.9 | 0.010 | 158 | 7.41 |
| 2 × 2.5 | 7 × 0.67 | 0.8 | 1.2 | 10.4 | 0.009 | 165 | 7.41 |
| 2 × 4 | 1 × 1.25 | 0.8 | 1.2 | 10.9 | 0.0085 | 205 | 4.61 |
| 2 × 4 | 7 × 0.85 | 0.8 | 1.2 | 11.4 | 0.0077 | 211 | 4.61 |
| 2 × 6 | 1 × 2.76 | 0.8 | 1.2 | 11.9 | 0.0070 | 264 | 3.08 |
| 2 × 6 | 7 × 1.04 | 0.8 | 1.2 | 12.4 | 0.0065 | 280 | 3.08 |
| 2 × 10 | 1 × 3.57 | 1.0 | 1.4 | 14.6 | 0.0070 | 432 | 1.83 |
| 2 × 10 | 7 × 1.35 | 1.0 | 1.4 | 13.9 | 0.0065 | 471 | 1.83 |
| 2 × 16 | 7 × 1.70 | 1.0 | 1.4 | 17.6 | 0.0052 | 648 | 1.15 |
| 2 × 25 | 7 × 2.14 | 1.2 | 1.4 | 21.1 | 0.0050 | 984 | 0.727 |
| 2 × 35 | 7 × 2.52 | 1.2 | 1.6 | 23.8 | 0.0044 | 1308 | 0.524 |
| 3 × 1.5 | 1 × 1.38 | 0.7 | 1.2 | 9.1 | 0.011 | 134 | 12.1 |
| 3 × 1.5 | 7 × 0.52 | 0.7 | 1.2 | 9.5 | 0.010 | 139 | 12.1 |
| 3 × 2.5 | 1 × 1.78 | 0.8 | 1.2 | 11.5 | 0.010 | 187 | 7.41 |
| 3 × 2.5 | 7 × 0.67 | 0.8 | 1.2 | 10.8 | 0.009 | 198 | 7.41 |
| 3 × 4 | 1 × 2.25 | 0.8 | 1.2 | 11.4 | 0.0085 | 247 | 4.61 |
| 3 × 4 | 7 × 0.85 | 0.8 | 1.2 | 11.9 | 0.0077 | 261 | 4.61 |
| 3 × 6 | 1 × 2.76 | 0.8 | 1.4 | 13.4 | 0.0070 | 336 | 3.08 |
| 3 × 6 | 7 × 1.04 | 0.8 | 1.4 | 13.6 | 0.0065 | 360 | 3.08 |
| 3 × 10 | 1 × 3.57 | 1.0 | 1.4 | 15.6 | 0.0070 | 532 | 1.83 |
| 3 × 10 | 7 × 1.35 | 1.0 | 1.4 | 16.6 | 0.0065 | 575 | 1.83 |
| 3 × 16 | 7 × 1.70 | 1.0 | 1.4 | 18.6 | 0.0052 | 827 | 1.15 |
| 3 × 25 | 7 × 2.14 | 1.2 | 1.6 | 22.9 | 0.0050 | 1228 | 0.727 |
| 3 × 35 | 7 × 2.52 | 1.2 | 1.6 | 25.1 | 0.0044 | 1592 | 0.524 |
| 4 × 1.5 | 1 × 1.38 | 0.7 | 1.2 | 9.9 | 0.011 | 159 | 12.1 |
| 4 × 1.5 | 7 × 0.52 | 0.7 | 1.2 | 10.4 | 0.010 | 168 | 12.1 |
| 4 × 2.5 | 1 × 1.78 | 0.8 | 1.2 | 11.4 | 0.010 | 224 | 7.41 |
| 4 × 2.5 | 7 × 0.67 | 0.8 | 1.2 | 11.6 | 0.009 | 237 | 7.41 |
| 4 × 4 | 1 × 2.25 | 0.8 | 1.4 | 12.9 | 0.0085 | 312 | 4.61 |
| 4 × 4 | 7 × 0.85 | 0.8 | 1.4 | 13.4 | 0.0077 | 330 | 4.61 |
| 4 × 6 | 1 × 2.76 | 0.8 | 1.4 | 14.1 | 0.0070 | 426 | 3.08 |
| 4 × 6 | 7 × 1.04 | 0.8 | 1.4 | 14.9 | 0.0065 | 456 | 3.08 |
| 4 × 10 | 1 × 3.57 | 1.0 | 1.4 | 17.1 | 0.0070 | 654 | 1.83 |
| 4 × 10 | 7 × 1.35 | 1.0 | 1.4 | 18.1 | 0.0065 | 705 | 1.83 |
| 4 × 16 | 7 × 1.70 | 1.0 | 1.4 | 20.2 | 0.0052 | 1019 | 1.15 |
| 4 × 25 | 7 × 2.14 | 1.2 | 1.6 | 24.9 | 0.0050 | 1589 | 0.727 |
| 4 × 35 | 7 × 2.52 | 1.2 | 1.6 | 27.5 | 0.0044 | 2095 | 0.524 |
| 5 × 1.5 | 1 × 1.38 | 0.7 | 1.2 | 10.6 | 0.011 | 190 | 12.1 |
| 5 × 1.5 | 7 × 0.52 | 0.7 | 1.2 | 11.0 | 0.010 | 202 | 12.1 |
| 5 × 2.5 | 1 × 1.78 | 0.8 | 1.2 | 12.4 | 0.010 | 270 | 7.41 |
| 5 × 2.5 | 7 × 0.67 | 0.8 | 1.2 | 12.6 | 0.009 | 289 | 7.41 |
| 5 × 4 | 1 × 2.25 | 0.8 | 1.4 | 14.1 | 0.0085 | 391 | 4.61 |
| 5 × 4 | 7 × 0.85 | 0.8 | 1.4 | 14.9 | 0.0077 | 413 | 4.61 |
| 5 × 6 | 1 × 2.76 | 0.8 | 1.4 | 15.4 | 0.0070 | 514 | 3.08 |
| 5 × 6 | 7 × 1.04 | 0.8 | 1.4 | 16.4 | 0.0065 | 552 | 3.08 |
| 5 × 10 | 1 × 3.57 | 1.0 | 1.4 | 18.9 | 0.0070 | 797 | 1.83 |
| 5 × 10 | 7 × 1.35 | 1.0 | 1.4 | 19.6 | 0.0065 | 860 | 1.83 |
| 5 × 16 | 7 × 1.70 | 1.0 | 1.6 | 23.0 | 0.0052 | 1282 | 1.15 |
| 5 × 25 | 7 × 2.14 | 1.2 | 1.6 | 27.4 | 0.0050 | 1910 | 0.727 |
| 5 × 35 | 7 × 2.25 | 1.2 | 1.6 | 30.3 | 0.0044 | 2503 | 0.524 |
