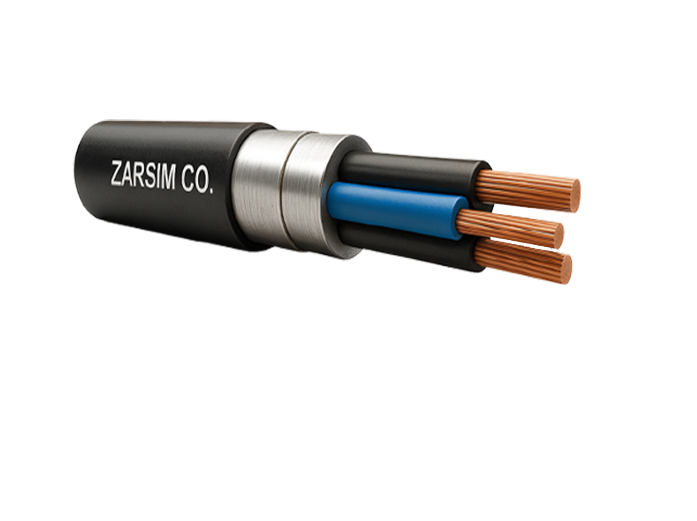

کابل نیمه افشان با زره نواری N2XBY) 600/1000V)

Application

■ These cables can be used indoor or outdoor in cable ducts, cable trays, conduits or underground locations under mechanical stress in power and switching stations, local distribution systems, industrial plants and commercial buildings.

Standard

■ IEC 60502-1
■ ISIRI 3569-1

Construction

■ Plain annealed copper class 1 & 2.
■ XLPE insulation.
■ Cores twisted together, if necessary in concentric layers.
■ Extruded PVC compatible with the operating temperature of the conductor.
■ Galvanized steel tape armour.
■ PVC sheath type ST2.

General specification

■ Rated voltage: 0.6/1 kV.
■ Working temperature: Max. 90°C.
■ Code designation: N2XBY.

Cross-sectional area Nom. (mm²)	No. of wires x diameter Nom. (mm)	Insulation thickness (mm)	Armour tape thickness (mm)	Sheath thickness (mm)	Overall diameter (mm)	Weight Approx. (kg/km)
2 x 1.5 rm	7 x 0.53	0.7	0.2	1.8	12.8	260
2 x 2.5 rm	7 x 0.67	0.7	0.2	1.8	13.8	305
2 x 4 rm	7 x 0.85	0.7	0.2	1.8	14.5	360
2 x 6 rm	7 x 1.04	0.7	0.2	1.8	16.6	455
2 x 10 rm	7 x 1.35	0.7	0.2	1.8	18.0	580
2 x 16 rm	7 x 1.70	0.7	0.2	1.8	19.6	740
2 x 25 rm	7 x 2.14	0.9	0.2	1.8	23.2	1050
3 x 1.5 rm	7 x 0.53	0.7	0.2	1.8	13.4	285
3 x 2.5 rm	7 x 0.67	0.7	0.2	1.8	14.4	340
3 x 4 rm	7 x 0.85	0.7	0.2	1.8	15.4	410
3 x 6 rm	7 x 1.04	0.7	0.2	1.8	16.8	530
3 x 10 rm	7 x 1.35	0.7	0.2	1.8	18.5	690
3 x 16 rm	7 x 1.70	0.7	0.2	1.8	20.4	910
3 x 25 rm	7 x 2.14	0.9	0.2	1.8	23.8	1280
3 x 35 rm	7 x 2.52	0.9	0.2	1.8	26.4	1650
3 x 25 / 16 rm	7 x 2.14 7 x 1.70	0.9 0.7	0.2	1.8	24.8	1460
3 x 35 / 16 rm	7 x 2.52 7 x 1.70	0.9 0.7	0.2	1.8	27.4	1820
4 x 1.5 rm	7 x 0.53	0.7	0.2	1.8	13.8	315
4 x 2.5 rm	7 x 0.67	0.7	0.2	1.8	14.8	380
4 x 4 rm	7 x 0.85	0.7	0.2	1.8	16.0	470
4 x 6 rm	7 x 1.04	0.7	0.2	1.8	18.5	620
4 x 10 rm	7 x 1.35	0.7	0.2	1.8	20.0	810
4 x 16 rm	7 x 1.70	0.7	0.2	1.8	22.0	1100
4 x 25 rm	7 x 2.14	0.9	0.2	1.8	26.2	1600
4 x 35 rm	7 x 2.52	0.9	0.2	1.9	31.4	2280
5 x 1.5 rm	7 x 0.53	0.7	0.2	1.8	14.8	360
7 x 1.5 rm	7 x 0.53	0.7	0.2	1.8	16.0	430
10 x 1.5 rm	7 x 0.53	0.7	0.2	1.8	19.0	560
12 x 1.5 rm	7 x 0.53	0.7	0.2	1.8	19.5	600
14 x 1.5 rm	7 x 0.53	0.7	0.2	1.8	20.0	640
16 x 1.5 rm	7 x 0.53	0.7	0.2	1.8	21.3	710
19 x 1.5 rm	7 x 0.53	0.7	0.2	1.8	21.8	780
24 x 1.5 rm	7 x 0.53	0.7	0.2	1.8	25.0	940
30 x 1.5 rm	7 x 0.53	0.7	0.2	1.8	26.0	1070
37 x 1.5 rm	7 x 0.53	0.7	0.2	1.8	28.2	1240
40 x 1.5 rm	7 x 0.53	0.7	0.2	1.9	29.2	1345
52 x 1.5 rm	7 x 0.53	0.7	0.2	2.0	32.3	1610
61 x 1.5 rm	7 x 0.53	0.7	0.2	2.1	34.5	1850
5 x 2.5 rm	7 x 0.67	0.7	0.2	1.8	15.8	440
7 x 2.5 rm	7 x 0.67	0.7	0.2	1.8	17.0	520
10 x 2.5 rm	7 x 0.67	0.7	0.2	1.8	20.6	680
12 x 2.5 rm	7 x 0.67	0.7	0.2	1.8	21.1	745
14 x 2.5 rm	7 x 0.67	0.7	0.2	1.8	22.2	820
16 x 2.5 rm	7 x 0.67	0.7	0.2	1.8	22.8	900
19 x 2.5 rm	7 x 0.67	0.7	0.2	1.8	24.0	990
24 x 2.5 rm	7 x 0.67	0.7	0.2	1.8	27.5	1220
30 x 2.5 rm	7 x 0.67	0.7	0.2	1.9	26.0	1420
37 x 2.5 rm	7 x 0.67	0.7	0.2	1.9	31.2	1650
40 x 2.5 rm	7 x 0.67	0.7	0.2	2.0	32.4	1810
52 x 2.5 rm	7 x 0.67	0.7	0.5	2.1	37.4	2570
61 x 2.5 rm	7 x 0.67	0.7	0.5	2.2	39.4	2920
