■ These cables can be used indoor or outdoor in cable duct, cable trays, conduit or underground in power and switching stations, local distribution systems, industrial plants and commercial building.
■ IEC 60502-1
■ ISIRI 3569-1
■ VDE 0271

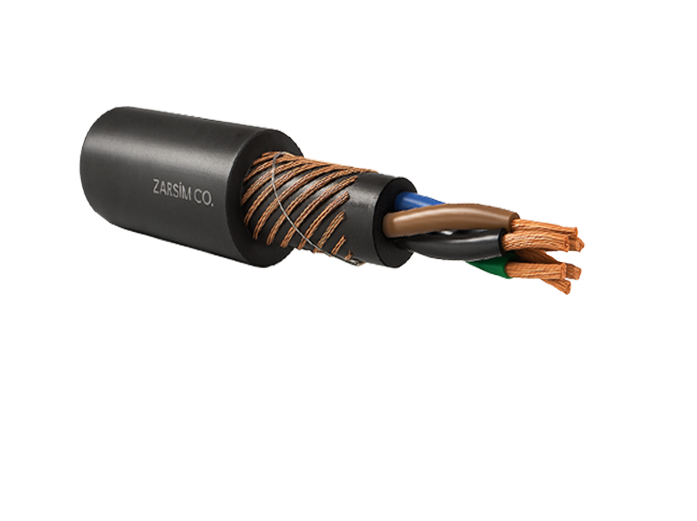

■ Plain annealed copper class 1 & 2.
■ XLPE insulation.
■ Cores twisted together, if necessary in concentric layers.
■ Extruded PVC compatible with the operating temperature of the conductor.
■ Concentric plain annealed copper wire applied helically over cable core, tape with open helix of copper tape screen.
■ PVC sheath type ST2.
■ Rated voltage: 0.6/1 kV.
■ Working temperature: Max. 90°C.
■ Code designation: N2XCY*.
*: N2XCWY can be supplied upon request
| Cross-sectional area Nom. (mm²) | No. of wires x diameter Nom. (mm) | Insulation thickness (mm) | Sheath thickness (mm) | Overall diameter (mm) | Weight Approx. (kg/km) |
|---|---|---|---|---|---|
| 2 x 1.5 rm / 1.5 | 7 x 0.53 | 0.7 | 1.8 | 13.2 | 235 |
| 2 x 2.5 rm / 2.5 | 7 x 0.67 | 0.7 | 1.8 | 14.2 | 280 |
| 2 x 4 rm / 4 | 7 x 0.85 | 0.7 | 1.8 | 15.5 | 358 |
| 2 x 6 rm / 6 | 7 x 1.04 | 0.7 | 1.8 | 16.7 | 445 |
| 2 x 10 rm / 10 | 7 x 1.35 | 0.7 | 1.8 | 18.9 | 630 |
| 2 x 16 rm / 16 | 7 x 1.70 | 0.7 | 1.8 | 21.3 | 870 |
| 2 x 25 rm / 25 | 7 x 2.14 | 0.9 | 1.8 | 25.0 | 1275 |
| 2 x 35 rm / 35 | 7 x 2.52 | 0.9 | 1.8 | 27.6 | 1640 |
| 3 x 1.5 rm / 1.5 | 7 x 0.53 | 0.7 | 1.8 | 13.4 | 250 |
| 3 x 2.5 rm / 2.5 | 7 x 0.67 | 0.7 | 1.8 | 14.4 | 314 |
| 3 x 4 rm / 4 | 7 x 0.85 | 0.7 | 1.8 | 16.0 | 410 |
| 3 x 6 rm / 6 | 7 x 1.04 | 0.7 | 1.8 | 17.2 | 515 |
| 3 x 10 rm / 10 | 7 x 1.35 | 0.7 | 1.8 | 19.6 | 735 |
| 3 x 16 rm / 16 | 7 x 1.70 | 0.7 | 1.8 | 22.0 | 1025 |
| 3 x 25 rm / 25 | 7 x 2.14 | 0.9 | 1.8 | 26.1 | 1520 |
| 3 x 35 rm / 35 | 7 x 2.52 | 0.9 | 1.9 | 29.0 | 1980 |
| 4 x 1.5 rm / 1.5 | 7 x 0.53 | 0.7 | 1.8 | 14.1 | 280 |
| 4 x 2.5 rm / 2.5 | 7 x 0.67 | 0.7 | 1.8 | 15.2 | 350 |
| 4 x 4 rm / 4 | 7 x 0.85 | 0.7 | 1.8 | 16.8 | 455 |
| 4 x 6 rm / 6 | 7 x 1.04 | 0.7 | 1.8 | 15.4 | 485 |
| 4 x 10 rm / 10 | 7 x 1.35 | 0.7 | 1.8 | 21.0 | 852 |
| 4 x 16 rm / 16 | 7 x 1.70 | 0.7 | 1.8 | 23.6 | 1210 |
| 4 x 25 rm / 25 | 7 x 2.14 | 0.9 | 1.8 | 28.0 | 1780 |
| 4 x 35 rm / 35 | 7 x 2.52 | 0.9 | 1.9 | 31.0 | 2364 |
| 5 x 1.5 rm / 1.5 | 7 x 0.53 | 0.7 | 1.8 | 15.0 | 315 |
| 7 x 1.5 rm / 1.5 | 7 x 0.53 | 0.7 | 1.8 | 16.0 | 370 |
| 10 x 1.5 rm / 2.5 | 7 x 0.53 | 0.7 | 1.8 | 18.8 | 486 |
| 12 x 1.5 rm / 2.5 | 7 x 0.53 | 0.7 | 1.8 | 19.6 | 550 |
| 16 x 1.5 rm / 4 | 7 x 0.53 | 0.7 | 1.8 | 21.2 | 660 |
| 19 x 1.5 rm / 4 | 7 x 0.53 | 0.7 | 1.8 | 22.2 | 746 |
| 24 x 1.5 rm / 6 | 7 x 0.53 | 0.7 | 1.8 | 25.2 | 910 |
| 27 x 1.5 rm / 6 | 7 x 0.53 | 0.7 | 1.8 | 26.0 | 980 |
| 30 x 1.5 rm / 6 | 7 x 0.53 | 0.7 | 1.8 | 26.5 | 1045 |
| 37 x 1.5 rm / 10 | 7 x 0.53 | 0.7 | 1.9 | 28.5 | 1230 |
| 48 x 1.5 rm / 10 | 7 x 0.53 | 0.7 | 2.0 | 32.4 | 1540 |
| 5 x 2.5 rm / 2.5 | 7 x 0.67 | 0.7 | 1.8 | 16.2 | 395 |
| 7 x 2.5 rm / 2.5 | 7 x 0.67 | 0.7 | 1.8 | 17.4 | 476 |
| 10 x 2.5 rm / 4 | 7 x 0.67 | 0.7 | 1.8 | 20.6 | 630 |
| 12 x 2.5 rm / 4 | 7 x 0.67 | 0.7 | 1.8 | 21.4 | 700 |
| 16 x 2.5 rm / 6 | 7 x 0.67 | 0.7 | 1.8 | 23.1 | 850 |
| 19 x 2.5 rm / 6 | 7 x 0.67 | 0.7 | 1.8 | 24.4 | 974 |
| 24 x 2.5 rm / 10 | 7 x 0.67 | 0.7 | 1.8 | 28.0 | 1184 |
| 27 x 2.5 rm / 10 | 7 x 0.67 | 0.7 | 1.9 | 28.6 | 1310 |
| 30 x 2.5 rm / 10 | 7 x 0.67 | 0.7 | 2.0 | 29.4 | 1410 |
| 37 x 2.5 rm / 10 | 7 x 0.67 | 0.7 | 2.1 | 31.6 | 1670 |
| 48 x 2.5 rm / 10 | 7 x 0.67 | 0.7 | 2.2 | 36.0 | 2090 |
