■ These cables can be used for electricity supply and control in public networks and industrial plants or public buildings, where people are potentially endangered in case of fire and where, for a defined period of time, the continuity of control and energy supply is of vital necessity.
■ IEC 60502-1
■ ISIRI 3569-1
■ BS 7846

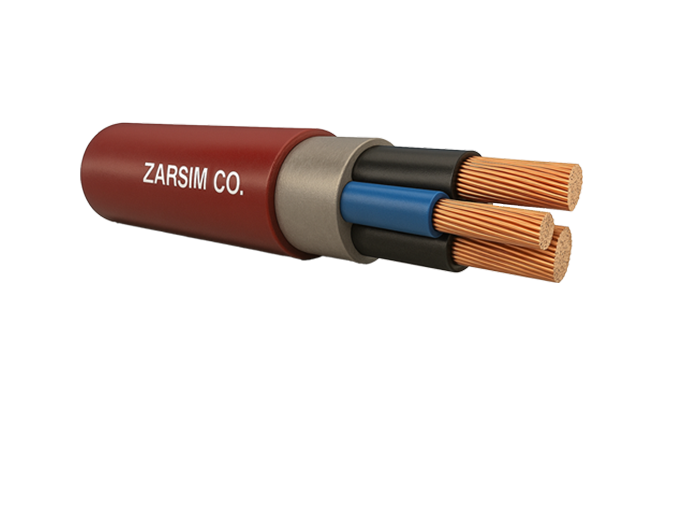

■ Plain or tinned annealed copper stranded class 2.
■ Mica-glass tape.
■ XLPE insulation.
■ Cores twisted together, if necessary in concentric layers.
■ Extruded filler of low smoke, halogen free, flame retardant-LSFOH.
■ Low smoke, halogen free, flame retardant-LSFOH sheath.
■ Rated voltage: 0.6/1 kV.
■ Working temperature: Max. 90°C.
■ Resistant to fire.
■ Low smoke and acid gas emission.
| Cross-sectional area Nom. (mm²) | No. of wires x diameter Nom. (mm) | Insulation thickness (mm) | Sheath thickness (mm) | Overall diameter (mm) | Weight Approx. (kg/km) |
|---|---|---|---|---|---|
| 2 x 1.5 rm | 7 x 0.53 | 0.7 | 1.8 | 12.4 | 170 |
| 2 x 2.5 rm | 7 x 0.67 | 0.7 | 1.8 | 13.2 | 230 |
| 2 x 4 rm | 7 x 0.85 | 0.7 | 1.8 | 14.4 | 282 |
| 2 x 6 rm | 7 x 1.04 | 0.7 | 1.8 | 15.4 | 344 |
| 3 x 1.5 rm | 7 x 0.53 | 0.7 | 1.8 | 13.0 | 222 |
| 3 x 2.5 rm | 7 x 0.67 | 0.7 | 1.8 | 13.9 | 264 |
| 3 x 4 rm | 7 x 0.85 | 0.7 | 1.8 | 15.2 | 332 |
| 3 x 6 rm | 7 x 1.04 | 0.7 | 1.8 | 16.4 | 404 |
| 4 x 1.5 rm | 7 x 0.53 | 0.7 | 1.8 | 14.0 | 242 |
| 4 x 2.5 rm | 7 x 0.67 | 0.7 | 1.8 | 15.0 | 288 |
| 4 x 4 rm | 7 x 0.85 | 0.7 | 1.8 | 16.5 | 378 |
| 4 x 6 rm | 7 x 1.04 | 0.7 | 1.8 | 17.7 | 472 |
| 5 x 1.5 rm | 7 x 0.53 | 0.7 | 1.8 | 15.2 | 286 |
| 5 x 2.5 rm | 7 x 0.67 | 0.7 | 1.8 | 16.3 | 344 |
| 5 x 4 rm | 7 x 0.85 | 0.7 | 1.8 | 18.0 | 424 |
| 5 x 6 rm | 7 x 1.04 | 0.7 | 1.8 | 19.4 | 555 |
| 7 x 1.5 rm | 7 x 0.53 | 0.7 | 1.8 | 16.0 | 300 |
| 10 x 1.5 rm | 7 x 0.53 | 0.7 | 1.8 | 20.0 | 412 |
| 12 x 1.5 rm | 7 x 0.53 | 0.7 | 1.8 | 20.6 | 450 |
| 19 x 1.5 rm | 7 x 0.53 | 0.7 | 1.8 | 24.3 | 605 |
| 27 x 1.5 rm | 7 x 0.53 | 0.7 | 1.8 | 28.8 | 796 |
| 37 x 1.5 rm | 7 x 0.53 | 0.7 | 1.8 | 32.2 | 1010 |
| 48 x 1.5 rm | 7 x 0.53 | 0.7 | 1.8 | 37.0 | 1250 |
| 7 x 2.5 rm | 7 x 0.67 | 0.7 | 1.8 | 17.2 | 382 |
| 10 x 2.5 rm | 7 x 0.67 | 0.7 | 1.8 | 21.6 | 514 |
| 12 x 2.5 rm | 7 x 0.67 | 0.7 | 1.8 | 22.4 | 600 |
| 19 x 2.5 rm | 7 x 0.67 | 0.7 | 1.8 | 26.4 | 810 |
| 27 x 2.5 rm | 7 x 0.67 | 0.7 | 1.8 | 31.5 | 1080 |
| 37 x 2.5 rm | 7 x 0.67 | 0.7 | 1.8 | 35.4 | 1370 |
| 48 x 2.5 rm | 7 x 0.67 | 0.7 | 1.8 | 40.3 | 1746 |
