■ For industrial in domestic environment, offices and shops, for connecting of light portable apparatus with light mechanical stress (lamps, office machines, hair dryers, etc.). Not suitable for kitchen or heating equipments, external use, industrial or agricultural buildings, portable and non-domestic tools.
■ Minimum bending radius: 6 times of maximum overall diameter.
■ ISIRI (607)52
■ IEC (60227)52
■ BS 6500
■ HD21
■ Annealed stranded copper conductor, class 5.
■ PVC insulation, type D.

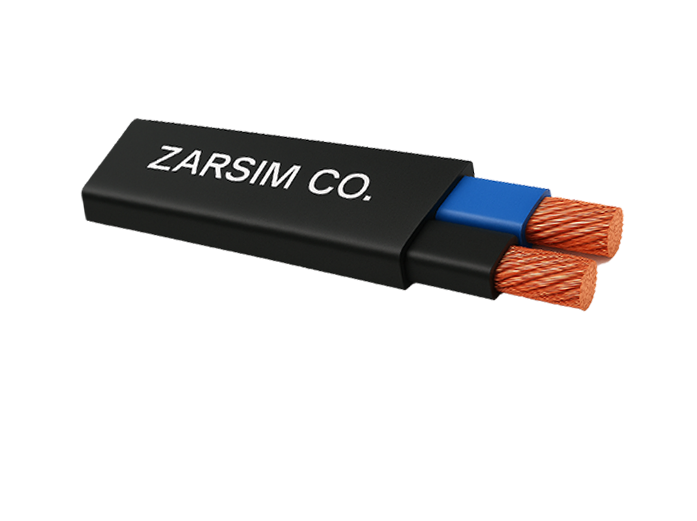

■ Cores twisted together for circular cords or laid parallel for flat cords.
■ PVC sheath type, ST5.
■ Rated voltage: 300/300 V.
■ Working temperature: Max. 70°C.
■ Harmonized code designation: H03VV-F, H03VVH2-F.
| Cross-sectional area Nom. (mm²) | No. of wires × diameter Nom. (mm) | Insulation thickness (mm) | Sheath thickness (mm) | Overall dimension (mm) | Insulation resistance at 70°C Min. (MΩ·km) | Weight Approx. (kg/km) | Conductor resistance at 20°C Max. (Ω/km) | |
|---|---|---|---|---|---|---|---|---|
| 2 × 0.5 | 16 × 0.20 | 0.5 | 0.6 | 5.1 or 3.2 × 5.3 | 0.012 | 43 35 | 39.0 | |
| 2 × 0.75 | 24 × 0.20 | 0.5 | 0.6 | 5.5 or 3.5 × 5.6 | 0.010 | 50 40 | 26.0 | |
| 3 × 0.5 | 16 × 0.20 | 0.5 | 0.6 | 5.5 | 0.012 | 51 | 39.0 | |
| 3 × 0.75 | 24 × 0.20 | 0.5 | 0.6 | 5.8 | 0.010 | 67 | 26.0 | |
| 4 × 0.5 | 16 × 0.20 | 0.5 | 0.6 | 6.0 | 0.011 | 55 | 39.0 | |
| 4 × 0.75 | 24 × 0.20 | 0.5 | 0.6 | 6.4 | 0.010 | 70 | 26.0 |
