■ For installation in domestic environment, for domestic home appliances, lamps, office machines with light mechanical stress. Suitable for environments where higher temperature resistance is needed, if cable is not in direct contact with hot surfaces. Not for external use.
■ Minimum bending radius: 6 times of maximum overall diameter.
■ ISIRI (607)56
■ IEC (60227)56
■ BS 6500
■ HD 21

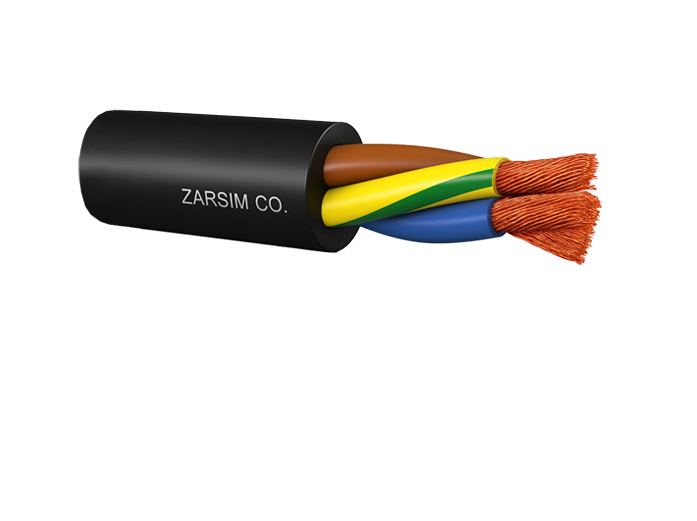

■ Annealed stranded copper conductor, class 5.
■ PVC insulation, type E.
■ Cores twisted together for circular cords or laid parallel for flat cords.
■ PVC sheath type ST10.
■ Rated voltage: 300/300 V.
■ Working temperature: Max. 90°C.
■ Harmonized code designation: H03V2V2-F, H03V2V2H2-F.
| Cross-sectional area Nom. (mm²) | No. of wires x diameter Nom. (mm) | Insulation thickness (mm) | Sheath thickness (mm) | Overall dimension (mm) | Insulation resistance at 90°C Min. (MΩ.km) | Weight Approx. (kg/km) | Conductor resistance at 20°C Max. (Ω/km) |
|---|---|---|---|---|---|---|---|
| 2 x 0.5 | 16 x 0.20 | 0.5 | 0.6 | 5.2 or 3.4 x 5.4 | 0.012 | 35 27 | 39.0 |
| 2 x 0.75 | 24 x 0.20 | 0.5 | 0.6 | 5.5 or 3.4 x 5.7 | 0.010 | 43 33 | 26.0 |
| 3 x 0.5 | 16 x 0.20 | 0.5 | 0.6 | 5.5 | 0.012 | 40 | 39.0 |
| 3 x 0.75 | 24 x 0.20 | 0.5 | 0.6 | 5.7 | 0.010 | 51 | 26.0 |
| 4 x 0.5 | 16 x 0.20 | 0.5 | 0.6 | 6.0 | 0.012 | 56 | 39.0 |
| 4 x 0.75 | 24 x 0.20 | 0.5 | 0.6 | 6.5 | 0.010 | 63 | 26.0 |
