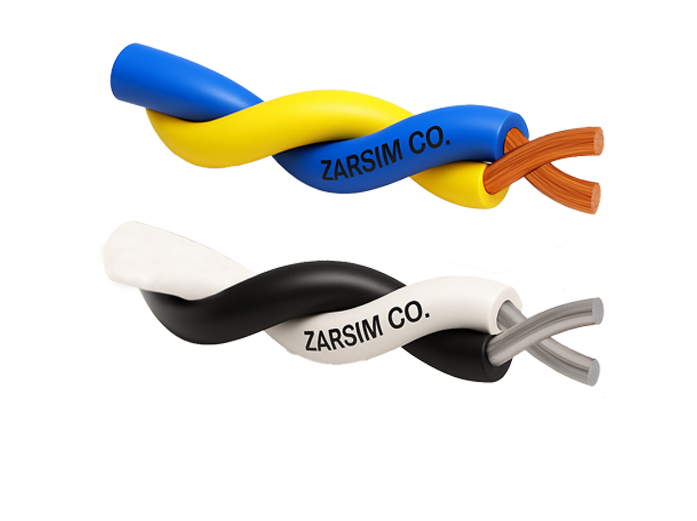

■ These wires are used for telephone wiring and signal installation in premises
■ VDE 0815
■ VDE 0812
■ Plain or tinned annealed copper conductor class 1.
■ PVC insulation, type YI 1 for jumper wires type Y.
■ PVC insulation, type YI 3 for jumper wires type YV.
| Number of wires / core diameter (mm) | Insulation thickness (mm) | Overall diameter (mm) | Weight Approx. (kg/km) | Operating voltage Peak value (V) | Conductor Resistance at 20°C Max. (Ω/km) |
|---|---|---|---|---|---|
| 1 x 0.5 / 0.9 | 0.2 | 0.9 | 2.5 | 500 | 92.2 |
| 2 x 0.5 / 0.9 | 0.2 | 1.8 | 5.0 | 500 | 95.0 |
| 3 x 0.5 / 0.9 | 0.2 | 2.0 | 7.5 | 500 | 95.0 |
| 4 x 0.5 / 0.9 | 0.2 | 2.2 | 10.0 | 500 | 95.0 |
| 1 x 0.5 / 1.1 | 0.3 | 1.1 | 3.0 | 900 | 92.2 |
| 2 x 0.5 / 1.1 | 0.3 | 2.2 | 6.0 | 900 | 95.0 |
| 1 x 0.6 / 1.1 | 0.25 | 1.1 | 3.7 | 900 | 64.0 |
| 2 x 0.6 / 1.1 | 0.25 | 2.2 | 7.5 | 900 | 66.0 |
| 3 x 0.6 / 1.1 | 0.25 | 2.4 | 11.0 | 900 | 66.0 |
| 4 x 0.6 / 1.1 | 0.25 | 2.7 | 15.0 | 900 | 66.0 |
| 5 x 0.6 / 1.1 | 0.25 | 3.0 | 19.0 | 900 | 66.0 |
| 1 x 0.6 / 1.4 | 0.4 | 1.4 | 4.5 | 900 | 65.0 |
| 2 x 0.6 / 1.4 | 0.4 | 2.8 | 9.0 | 900 | 66.0 |
| 3 x 0.6 / 1.4 | 0.4 | 3.0 | 13.5 | 900 | 66.0 |
| 4 x 0.6 / 1.4 | 0.4 | 3.4 | 18.0 | 900 | 66.0 |
| 5 x 0.6 / 1.4 | 0.4 | 3.8 | 23.0 | 900 | 66.0 |
| 1 x 0.8 / 1.4 | 0.3 | 1.4 | 6.0 | 900 | 36.0 |
| 2 x 0.8 / 1.4 | 0.3 | 2.8 | 12.0 | 900 | 36.7 |
| 1 x 1.0 / 1.8 | 0.4 | 1.8 | 10.0 | 900 | 22.8 |
| 2 x 1.0 / 1.8 | 0.4 | 3.6 | 20.0 | 900 | 23.3 |
| 1 x 1.4 / 2.2 | 0.4 | 2.2 | 17.5 | 900 | 11.6 |
| 1 x 1.8 / 2.8 | 0.5 | 2.8 | 28.0 | 1500 | 7.1 |
