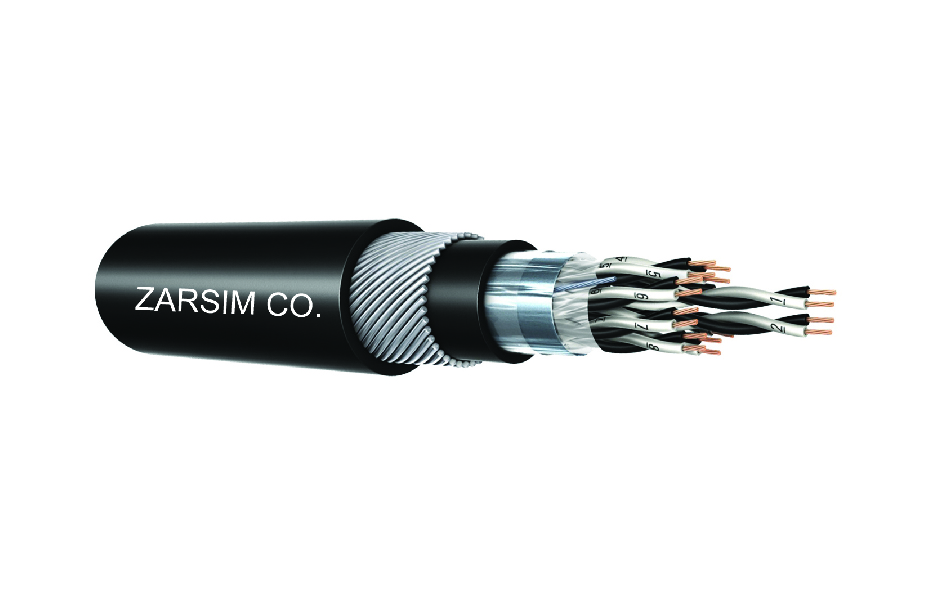

Single, multipair, mica tape + XLPE insulation, individual & collective screen, LSZH sheath
| Armoured RE-2X(St)HSWAH…Cl |
||
|---|---|---|
| Diameter under armour | Outer diameter | Weight |
| (mm²) | (mm) | (kg/km) |
| 0.75 mm²/7 , RE-2X(St)HSWAH…Cl | ||
| 7.8 | 12.3 | 199 |
| 10.7 | 15.5 | 307 |
| 14.8 | 22.2 | 382 |
| 20.1 | 25.8 | 435 |
| 24.9 | 31 | 825 |
| 28.2 | 34.6 | 1,291 |
| 1 mm²/7 , RE-2X(St)HSWAH…Cl | ||
| 8.4 | 12.7 | 316 |
| 11.5 | 18.3 | 549 |
| 15.7 | 23.7 | 798 |
| 21.3 | 28.8 | 1279 |
| 26.5 | 32.9 | 1622 |
| 30.2 | 36.9 | 1,971 |
| 1.5 mm²/7 , RE-2X(St)HSWAH…Cl | ||
| 9.3 | 13.7 | 346 |
| 13 | 19.6 | 622 |
| 18.1 | 25.5 | 927 |
| 24.8 | 31.3 | 1535 |
| 30.8 | 35.8 | 1,954 |
| 34.9 | 40.8 | 2,631 |
| Armoured RE-2G(St)HSWAH…Cl |
||
|---|---|---|
| Diameter under armour | Outer diameter | Weight |
| (mm²) | (mm) | (kg/km) |
| 0.75 mm²/Solid , RE-2G(St)HSWAH…Cl | ||
| 6.5 | 10.7 | 235 |
| 9.5 | 14.5 | 381 |
| 10.5 | 15.2 | 472 |
| 12 | 18.4 | 550 |
| 13 | 18.5 | 574 |
| 16.5 | 22.3 | 760 |
| 20.5 | 24.2 | 941 |
| 22.6 | 27.1 | 1,146 |
| 1 mm²/7 , RE-2G(St)HSWAH…Cl | ||
| 7.4 | 11.3 | 265 |
| 10.6 | 15.9 | 452 |
| 11.2 | 16.2 | 528 |
| 13.7 | 20.1 | 665 |
| 14.8 | 20.3 | 695 |
| 18.9 | 23.8 | 937 |
| 23.2 | 27.8 | 1368 |
| 26.2 | 30.9 | 1,650 |
| 1.5 mm²/7 , RE-2G(St)HSWAH…Cl | ||
| 8.7 | 12.1 | 305 |
| 10.2 | 15 | 525 |
| 12.9 | 17.2 | 614 |
| 16.7 | 22.1 | 794 |
| 17.5 | 22.3 | 845 |
| 23.4 | 27 | 1315 |
| 28.9 | 30.7 | 1,691 |
| 32.5 | 34.4 | 2,075 |
