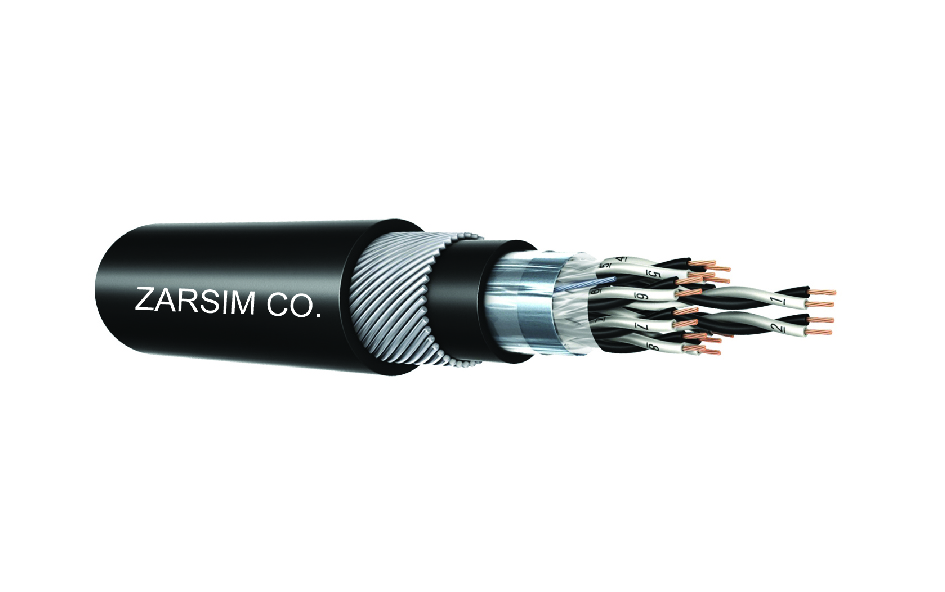

Single, multipair, XLPE insulation, individual & collective screen, LSZH sheath
| Armoured RE-2X(St)HSWAH |
||
|---|---|---|
| Diameter under armour | Outer diameter | Weight |
| (mm²) | (mm) | (kg/km) |
| 0.5 mm²/7 , RE-2X(St)HSWAH | ||
| 6.3 | 9.6 | 177 |
| 8.3 | 12.2 | 279 |
| 9 | 13.6 | 336 |
| 9.8 | 14.4 | 375 |
| 13.7 | 18.5 | 592 |
| 18.5 | 24.4 | 1,058 |
| 0.75 mm²/7 , RE-2X(St)HSWAH | ||
| 6.7 | 10.2 | 199 |
| 9.2 | 13.3 | 307 |
| 10 | 14.6 | 382 |
| 11.1 | 15.9 | 435 |
| 15.3 | 21 | 825 |
| 21 | 27.1 | 1,291 |
| 1 mm²/7 , RE-2X(St)HSWAH | ||
| 7.2 | 10.7 | 219 |
| 9.9 | 14 | 357 |
| 11.1 | 15.9 | 449 |
| 12.1 | 16.9 | 508 |
| 17 | 22.9 | 972 |
| 23.3 | 29.4 | 1,520 |
| 1.3 mm²/7 , RE-2X(St)HSWAH | ||
| 7.7 | 11.2 | 241 |
| 11.1 | 15 | 382 |
| 12.2 | 17 | 510 |
| 13.6 | 18.4 | 595 |
| 19.1 | 25 | 1,110 |
| 26.2 | 33.2 | 1,960 |
| 1.5 mm²/7 , RE-2X(St)HSWAH | ||
| 8.2 | 11.7 | 259 |
| 11.5 | 15.8 | 448 |
| 12.7 | 17.5 | 544 |
| 14.2 | 19.2 | 644 |
| 19.9 | 25.8 | 1,227 |
| 27.6 | 34.8 | 2,247 |
