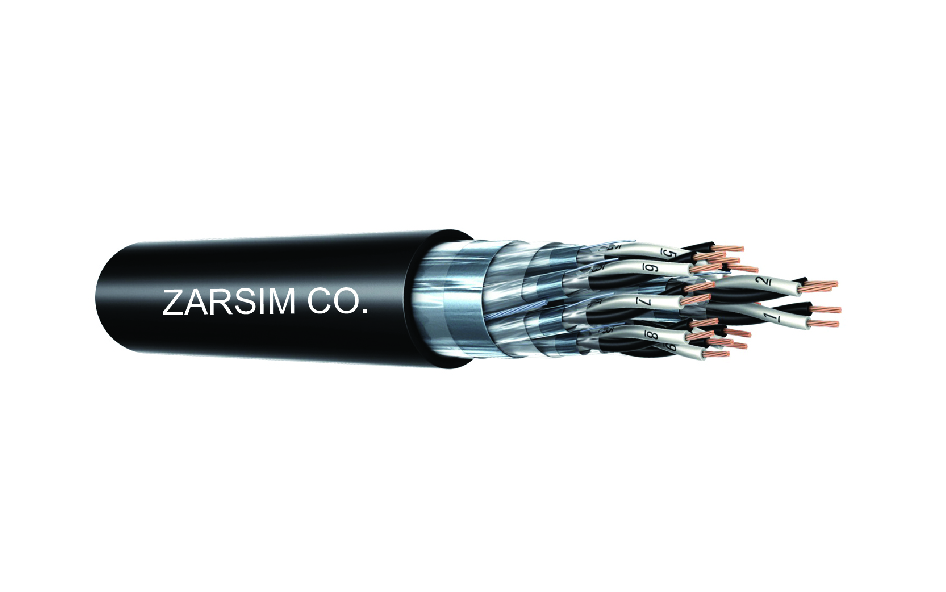

Single, multipair, PVC insulation, individual & collective screen, PVC sheath
| Unarmoured RE-Y(St)Y, PiMF |
||
|---|---|---|
| Cross section | Outer diameter | Weight |
| (mm²) | (mm) | (kg/km) |
| 0.5 mm²/7 , RE-Y(St)Y, PiMF | ||
| 2 × 2 × 0.5 | 9.3 | 83 |
| 4 × 2 × 0.5 | 10.2 | 120 |
| 5 × 2 × 0.5 | 11.4 | 152 |
| 12 × 2 × 0.5 | 15.8 | 304 |
| 24 × 2 × 0.5 | 21.8 | 584 |
| 0.75 mm²/7 , RE-Y(St)Y, PiMF | ||
| 2 × 2 × 0.75 | 10.1 | 103 |
| 4 × 2 × 0.75 | 11.4 | 151 |
| 5 × 2 × 0.75 | 12.5 | 183 |
| 12 × 2 × 0.75 | 17.6 | 381 |
| 24 × 2 × 0.75 | 24.4 | 734 |
| 1 mm²/7 , RE-Y(St)Y, PiMF | ||
| 2 × 2 × 1 | 11 | 125 |
| 4 × 2 × 1 | 12.3 | 182 |
| 5 × 2 × 1 | 13.7 | 231 |
| 12 × 2 × 1 | 19.3 | 480 |
| 24 × 2 × 1 | 26.5 | 913 |
| 1.3 mm²/7 , RE-Y(St)Y, PiMF | ||
| 2 × 2 × 1.3 | 12 | 160 |
| 4 × 2 × 1.3 | 13.7 | 222 |
| 5 × 2 × 1.3 | 15 | 280 |
| 12 × 2 × 1.3 | 21.2 | 594 |
| 24 × 2 × 1.3 | 29.3 | 1,171 |
| 1.5 mm²/7 , RE-Y(St)Y, PiMF | ||
| 2 × 2 × 1.5 | 12.4 | 157 |
| 4 × 2 × 1.5 | 14.2 | 243 |
| 5 × 2 × 1.5 | 15.5 | 299 |
| 12 × 2 × 1.5 | 22.2 | 646 |
| 24 × 2 × 1.5 | 30.7 | 1,264 |
| 2 × 2 × 1.5 | 11.4 | 138 |
| 4 × 2 × 1.5 | 12.7 | 212 |
| 5 × 2 × 1.5 | 14.2 | 268 |
| 12 × 2 × 1.5 | 19.9 | 568 |
| 24 × 2 × 1.5 | 27.6 | 1,092 |
| Unarmoured RE-2X(St)Y, PiMF |
||
|---|---|---|
| Cross section | Outer diameter | Weight |
| (mm²) | (mm) | (kg/km) |
| 0.5 mm²/7 , RE-2X(St)Y, PiMF | ||
| 2 × 2 × 0.5 | 9.4 | 90 |
| 4 × 2 × 0.5 | 10.2 | 116 |
| 5 × 2 × 0.5 | 11.4 | 145 |
| 12 × 2 × 0.5 | 15.8 | 289 |
| 24 × 2 × 0.5 | 21.8 | 554 |
| 0.75 mm²/7 , RE-2X(St)Y, PiMF | ||
| 2 × 2 × 0.75 | 10.2 | 106 |
| 4 × 2 × 0.75 | 11.4 | 146 |
| 5 × 2 × 0.75 | 12.5 | 177 |
| 12 × 2 × 0.75 | 17.6 | 367 |
| 24 × 2 × 0.75 | 24.4 | 706 |
| 1 mm²/7 , RE-2X(St)Y, PiMF | ||
| 2 × 2 × 1 | 11.1 | 121 |
| 4 × 2 × 1 | 12.3 | 174 |
| 5 × 2 × 1 | 13.7 | 231 |
| 12 × 2 × 1 | 19.3 | 480 |
| 24 × 2 × 1 | 26.5 | 913 |
| 1.3 mm²/7 , RE-2X(St)Y, PiMF | ||
| 2 × 2 × 1.3 | 12.1 | 164 |
| 4 × 2 × 1.3 | 13.7 | 209 |
| 5 × 2 × 1.3 | 15 | 264 |
| 12 × 2 × 1.3 | 21.2 | 554 |
| 24 × 2 × 1.3 | 29.3 | 1,090 |
| 1.5 mm²/7 , RE-2X(St)Y, PiMF | ||
| 2 × 2 × 1.5 | 12.5 | 159 |
| 4 × 2 × 1.5 | 14.2 | 236 |
| 5 × 2 × 1.5 | 15.5 | 290 |
| 12 × 2 × 1.5 | 22.2 | 625 |
| 24 × 2 × 1.5 | 30.7 | 1,222 |
